Automatic Corrugated Cardboard Flute Laminator Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout

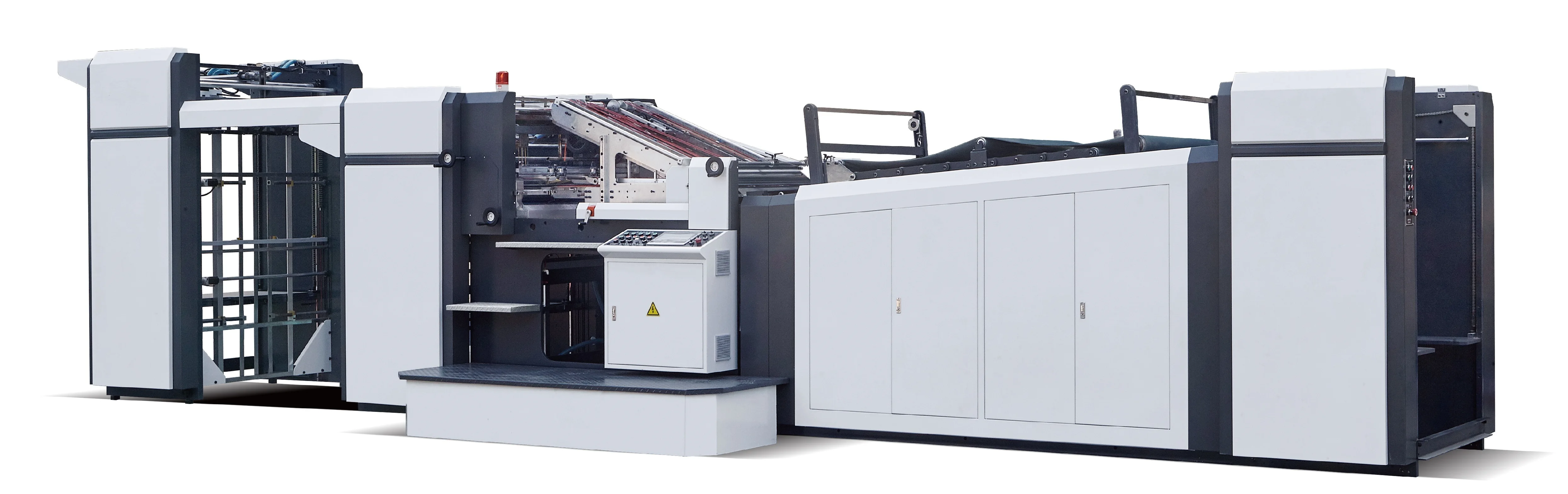

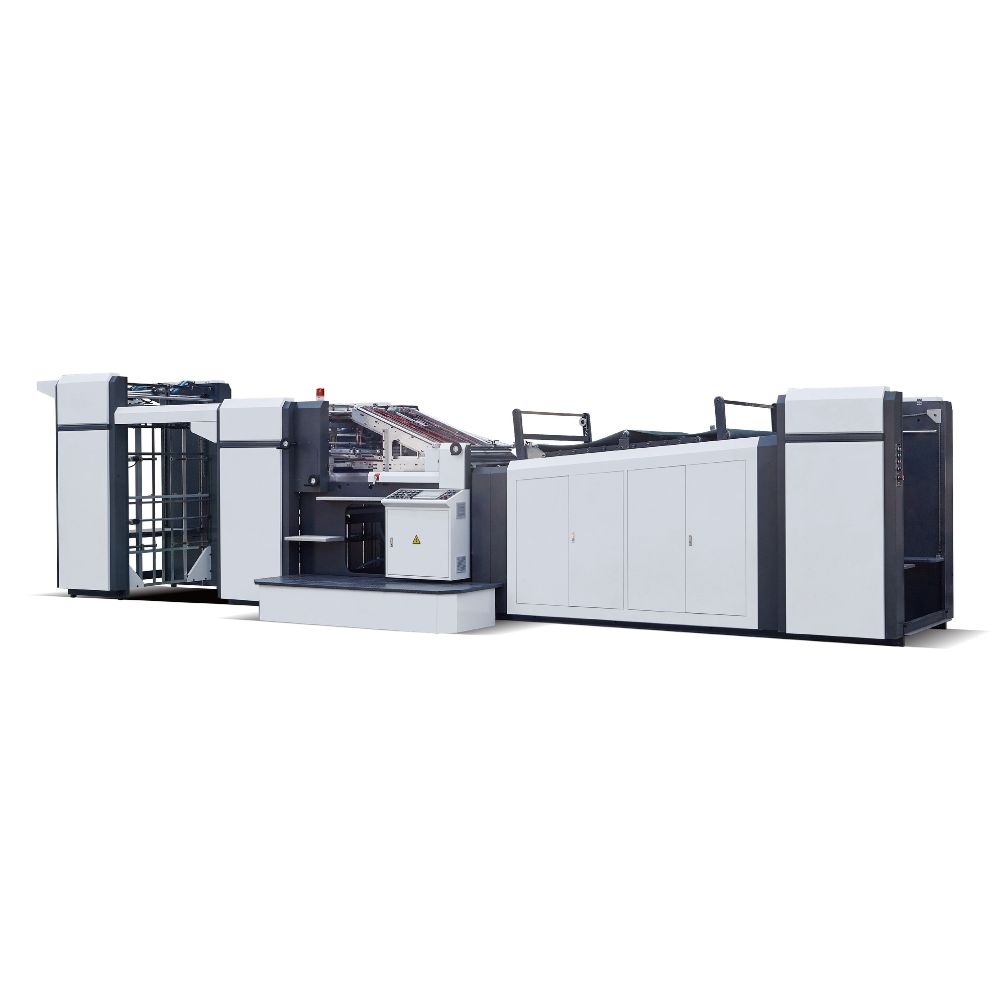

Automatic Corrugated Cardboard Flute Laminator Machine
Automatic Cardboard Laminator
Features
This machine adopts the special motion tracing position system that makes the two sheets get aligned accurately.For sheet-to-sheet laminating of cardboard,glossy paper and greyboard,performing a high accuracy.The machine is widely used in the production of wine boxes,tags,puzzle games and gift boxes,etc.
1.Unique dynamic calibration synchronization system.
2.Special design to push the piled paper to the feeder with a pallet truck.
3.Feeder moves back and forth automatically,easy operating.
4.Fluffing delivery system loosens the overlapping finished products and then push them neatly to ensure neat and smooth delivery.
5.The speed and distance of the pressing unit are electrically adjusted.
6.PLC computer control system can automatically detect the operation status, abnormal status,maintenance status and history work.
7.High-precision gluing system,automatic liquid level control,the gluing amount could be precisely adjusted according to the different paper.
2.Special design to push the piled paper to the feeder with a pallet truck.
3.Feeder moves back and forth automatically,easy operating.
4.Fluffing delivery system loosens the overlapping finished products and then push them neatly to ensure neat and smooth delivery.
5.The speed and distance of the pressing unit are electrically adjusted.
6.PLC computer control system can automatically detect the operation status, abnormal status,maintenance status and history work.
7.High-precision gluing system,automatic liquid level control,the gluing amount could be precisely adjusted according to the different paper.
Technical Parameters
|
Model
|
1207BK
|
1210BK
|
|
Max Sheet Size
|
1200×710mm
|
1200×1000mm
|
|
Min Sheet Size
|
450×280mm
|
450×280mm
|
|
Top Paper Thickness
|
100-800g/m2
|
100-800g/m2
|
|
Bottom Paper Thickness
|
180-1200g/m2
|
180-1200g/m2
|
|
Accuracy
|
±0.5mm
|
±0.5mm
|
|
Weight
|
7500KGS
|
7500KGS
|
|
Machine Power
|
20KW
|
20KW
|
Configuration
1.Feeder System:equipped with high speed dedicated feeder,feeding nozzle can freely adjust the angle to the paper;Feeder position adjusts automatically.
2.Laminating System:The paper is chased against the gauge by the speed difference between the paper and the motion gauge,performing high accuracy.
3.Electrical System:Designed in the accordance with European CE stacdard,human-machine interface detects the faults automatically and alarms any abnormal.
4.Bottom Feeding System:equipped with high speed dedicated feeder,feeding nozzle can freely adjust the angle to the paper;Feeder position and feeding width adjusts automatically.
5.Airing System:Equipped with two Germany Baker pumps that provide the stable airing supply for both up and bottom feeder.
2.Laminating System:The paper is chased against the gauge by the speed difference between the paper and the motion gauge,performing high accuracy.
3.Electrical System:Designed in the accordance with European CE stacdard,human-machine interface detects the faults automatically and alarms any abnormal.
4.Bottom Feeding System:equipped with high speed dedicated feeder,feeding nozzle can freely adjust the angle to the paper;Feeder position and feeding width adjusts automatically.
5.Airing System:Equipped with two Germany Baker pumps that provide the stable airing supply for both up and bottom feeder.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou, Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?

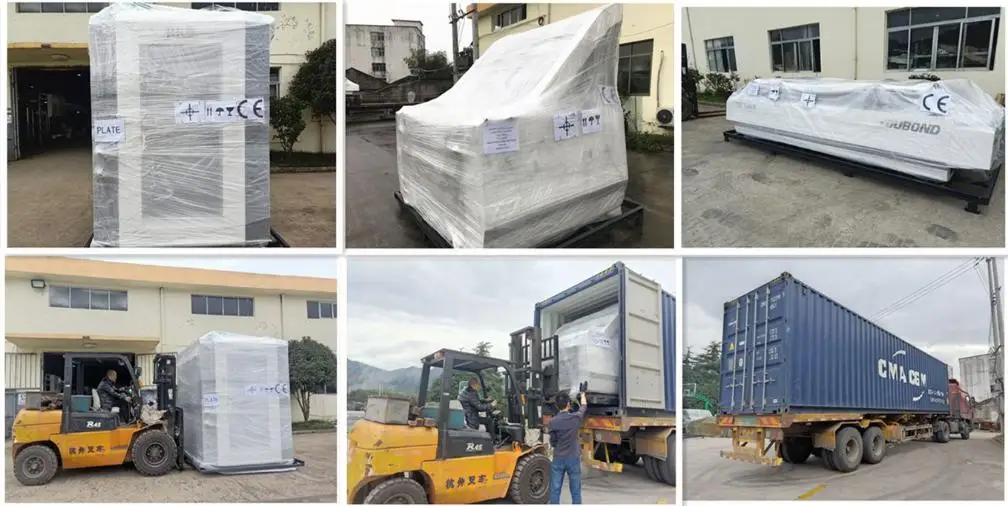

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
