PRY-2513 Phone Case Flatbed Inkjet Sticker Led Large Format UV Printing Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
PRY-2513 Phone Case Flatbed Inkjet Sticker Led Large Format UV Printing Machine

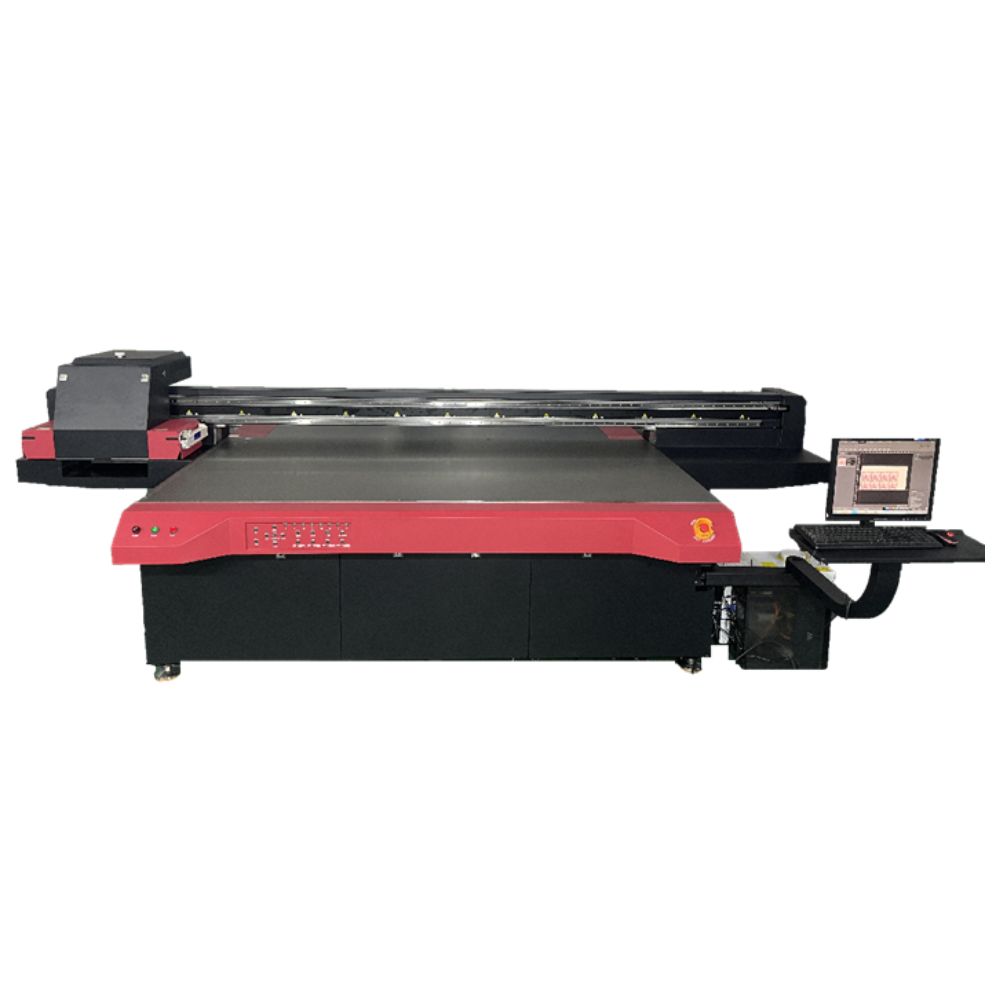

PRY-2513 Flatbed UV Printing Machine
Features
Industrial machine frame,can be with 8 pcs of Ricoh G5/G6 printheads,high resolution,high speed,multiable application,suitable for mass production.
1.The picture can reach a maximum of 2400dpi.No matter what kind of material is printed on,the high precision of the picture can be perfectly demonstrated.
2.Print head anti-collision system design to avoid damage to the carriage or print head.
3.Medium thickness automatic detection system to greatlyimprove the print guality of the pattern.
4.All-steel integrated frame,effectively improve the stability of the machine. 5.Domestic well-known brand LED high-power air cooler UV lamp, long life,high efficiency,low energy consumption.
Technical Parameters
|
PRY-2513 Flatbed UV Printing Machine
|
||
|
Printhead Model
|
Ricoh G5/G6 8 Unit
|
|
|
Max Printing Area
|
2500 * 1250 mm
|
|
|
Max Printing Height
|
100 mm
|
|
|
Printing Resolution
|
720 * 720 mm 720 * 1080 mm 720 * 1440 mm 720 * 2160 mm 720 * 2400 mm
|
|
|
Printing Mode and Precision
|
C/M/Y/K/LC/LM/White/Varnish Free Combination
|
|
|
Special Printing Method
|
Supports Printing of Cylinders with a Diameter of 20 ~ 120 mm
|
|
|
Printing Speed
|
Draft Mode
|
24.3 m²/h
|
|
Produce Mode
|
16.2 m²/h
|
|
|
HQ Mode
|
12.3 m²/h
|
|
|
Printing Platform
|
Vacuum Adsorption Platform
|
|
|
Ink Supply Method
|
Negative Pressure
|
|
|
Curing Method
|
High Power LED Water Cooled UV Lamp
|
|
|
Ink Type
|
UV Curable Ink
|
|
|
Control System
|
Hoson
|
|
|
Data Interface
|
Network
|
|
|
Software
|
Ultraprint , Optional Photoprint , Onyx , Caldera
|
|
|
Image Format
|
TIFF , BMP , EPS , JPEG etc.
|
|
|
Color Control
|
Comply with ICC Standard,have Curve and Density Adjustment Function
|
|
|
Catridge Volume
|
1.5 L
|
|
|
Computer Config
|
Intel Core i7-7 and Above,USB3.0,Gigabit Network Card,8GB Memory,Solid State Drive
|
|
|
Power
|
3000 W
|
|
|
Machine Size
|
4700 * 2130 * 1400 mm
|
|
|
Net Weight / Gross Weight
|
1250 kg
|
|
|
Operating Environment
|
Temperature Device Operation 15℃ - 30℃ (Recommended 20℃ - 28℃)
Humidity Equipment Running 20% - 80% (Recommended 40% - 60%)
|
|
|
Materials Printed
|
Glass,Acrylic,Wood,Tile,Metal Plate,PVC Board,Corrugated Board,Plastic,etc.
|
|
Advantage

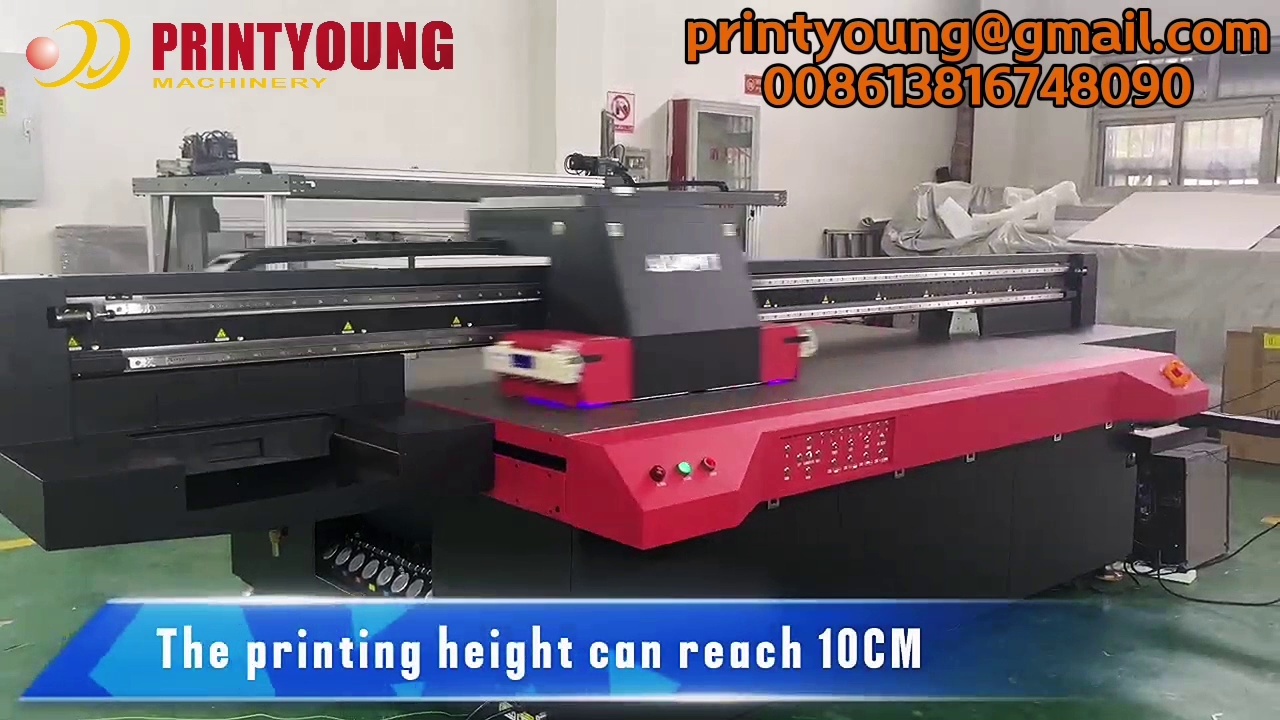

Max Printing Height 10CM
Suitable for printing more products,the automatic media thickness detection system greatly improves the print quality of patterns
Magnetic Suspension Motor
Avoid the gap error and mechanical jitter in the motion transmission,and achieve accurate X-direction positioning
High Power Water Cooled UV Lamp
High precision dual negative pressure system ensures stable ink supply when the printer workload is large.
Dual Negative-Pressure System
High precision dual negative pressure system ensures stable ink supply when the printer workload is large.
Steel Beam
The beam of the fuselage adopts stress-quenching steel beam,which is more accurate than the ordinary aluminum alloy beam and does not deform for a long time.
Oxidation Platform
Thickened hard oxidation platform,flatness less than 10 wires,effectively ensure the full plate printing screen accuracy.
High Quality Part
THK guide rail,servo motor,meanwell power supply,etc.,the whole machine is equipped with 3 motors,and the blessing of high-quality accessories makes the machine run more stable.
Adjustable Platform Partition Air Absorption
Support 4 partition air absorption adjustment,support LED light adjustment.
Applications
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou, Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa, Morocco and Italy.
