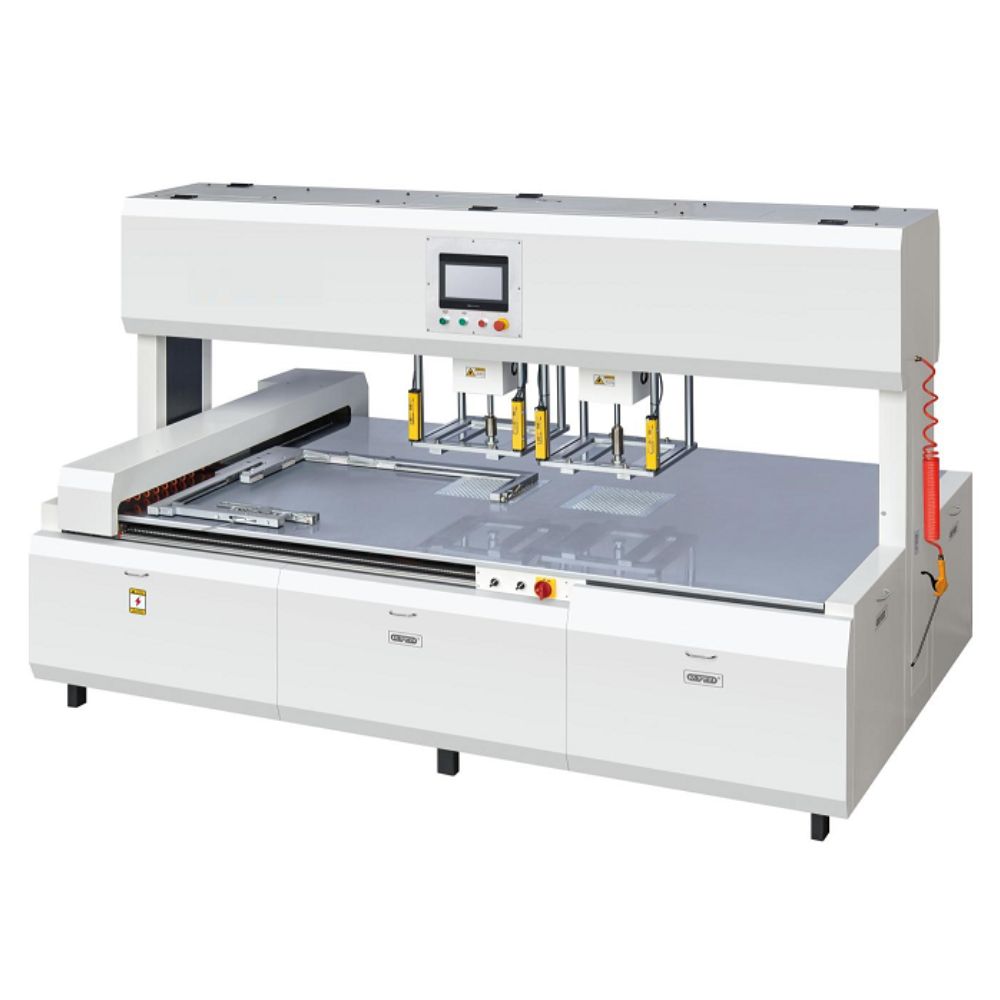

PRY-ST-92 Automatic Double Heads Trash Remover Waste Cleaning Stripping Machine for Die Cutting Box
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
PRY-ST-92 Automatic Double Heads Trash Remover Waste Cleaning Stripping Machine for Die Cutting Box

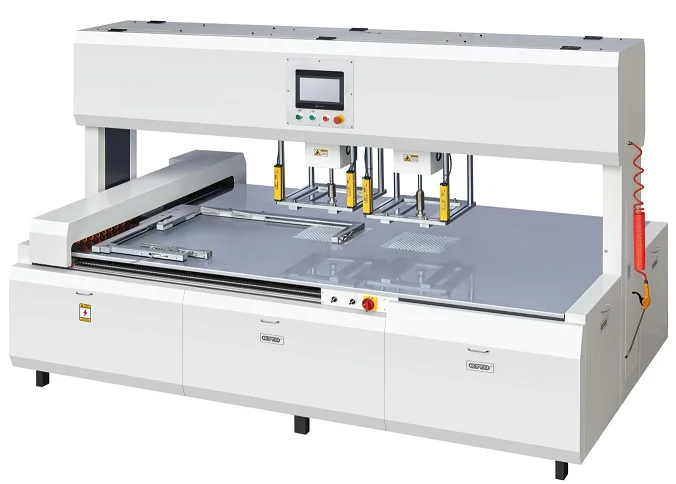

PRY-ST-92 Automatic Stripping Machine with Double Heads
Technical Parameters
|
PRY-ST-92 Automatic Stripping Machine
|
|
|
Model
|
PRY-ST-92
|
|
Max Stripping Area
|
920 * 650 mm
|
|
Mini Stripping Area
|
450 * 320 mm
|
|
Max Stripping Finished Product Size
|
310 * 280 mm
|
|
Mini Stripping Finishes Product Size
|
30 * 30 mm
|
|
Stripping Height
|
40 - 120 mm
|
|
Stripping Speed
|
15 - 20 time/min
|
|
Main Power
|
4 kw
|
|
Voltage
|
380 V / 50 Hz
|
|
Wire Specification
|
2.5 mm
|
|
Machine Weight
|
2100 kg
|
|
Overall Dimension
|
2950 * 1600 * 1900 mm
|
|
Packing Size
|
3200 * 1900 * 2050 mm
|
|
List of Machine Accessories
|
Name
|
Quantity
|
|
1
|
Instructions
|
1 piece
|
|
2
|
Oiling kettle
|
1 piece
|
|
3
|
10 inches adjustable spanner
|
1 piece
|
|
4
|
sharp-nose pliers
|
1 piece
|
|
5
|
Inner hexagon spanner
|
1 piece
|
|
6
|
slotted screwdriver
|
2 pieces
|
|
7
|
Cross screwdriver
|
1 piece
|
|
8
|
8-10 Open spanner
|
1 piece
|
|
9
|
14-17 Open spanner
|
1 piece
|
|
10
|
19-22 Open spanner
|
1 piece
|
|
11
|
24-27 Open spanner
|
1 piece
|
|
12
|
toolbox
|
1 piece
|
|
13
|
Stripping mould
|
2 sets
|
|
14
|
Pressed paper strip
|
2 sets(24 pieces)
|
|
15
|
pin
|
500pieces
|
|
16
|
rubber
|
1200pieces
|
|
17
|
Lock pin switch
|
2 pieces
|
|
18
|
screw jack6#*5
|
10 pieces
|
|
19
|
screw jack5#*5
|
10 pieces
|
|
20
|
screw jack8#*5
|
10 pieces
|
|
21
|
flat washer
|
30pieces
|
|
22
|
T-cap base
|
30 pieces
|
|
23
|
LED
|
1 piece
|
|
24
|
screen
|
30pieces
|
Optional
Robot Hand for Single Head / Twin Head
Conveyor available in straight and round type.

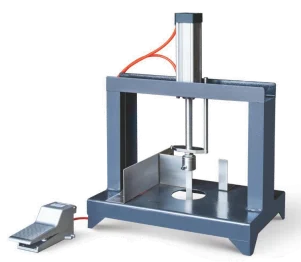

Customized hole punching device.
Hole punching device for tags.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa, Morocco and Italy.
