Home > Products > Post-Press > Paper Bag Making Machine > PRY1200CS-430 Fully Automatic Sheet Feeding Paper Bag Making Machine

PRY1200CS-430 Fully Automatic Sheet Feeding Paper Bag Making Machine

PRY1200CS-430 Fully Automatic Sheet Feeding Paper Bag Making Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

PRY1200CS-430 Fully Automatic Sheet Feeding Paper Bag Making Machine

PRY1200CS-430 Paper Bag Making Machine

Features

PRY1200CS-430 fully automatic sheet-feeding paper bag making machine(Adopt Italy technology)is suitable for the mass bag production,it is the first choice of medium and top grade handbag device.The product adopts mechanical,electricity,light,gas integration technology,setting a number of its proprietary technology,can one-time leaflet after press and creased paper,automatic paper feeding,positioning,tope folding,tube folding,bottom folding and gluing to compa-ction output.The variable speed drive technology,combined with the system of vertical and horizontal creasing,bottom folding realize trackless bag molding process.using the PLC programmable control,frequency control technology to realize the integral multi-dimensional control,more centralized control and single point remote control operating system.with characteristics of good quality and high efficiency,its technology ranks leading level in domestic products.

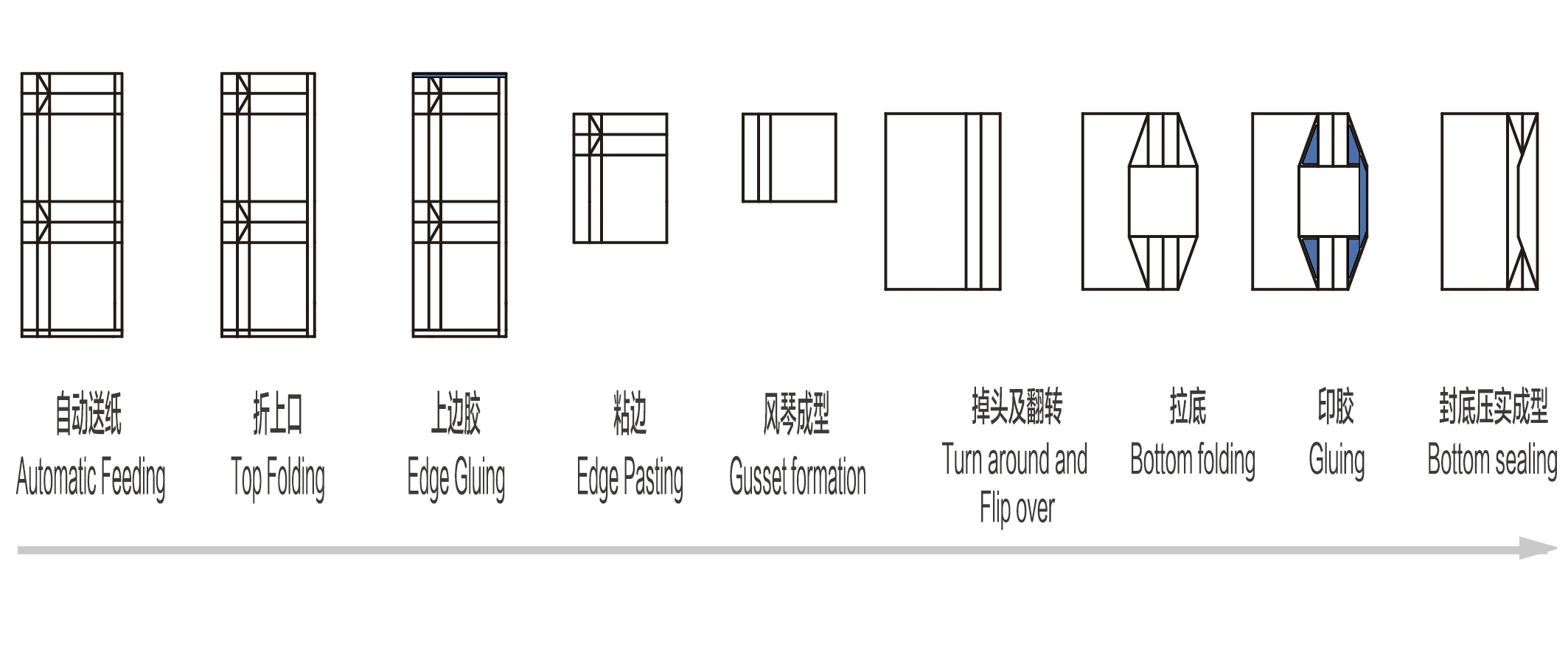

Working Procedure (finished paper bag tube folding and top edge fold)

Technical Parameters

PRY1200CS-430 Paper Bag Making Machine
Input Max.Size	1200mm * 600mm
Input Min.Size	540mm * 300mm
Top Folding Sheet Weight	190g/m²-300g/m²
No Top Folding Sheet Weight	120g/m²-300g/m²
Bottom Width	80mm-180mm
Bag Width	180mm-430mm
Power	20KW
Bag Length	250mm-500mm
Speed	50-80 pcs/min
Machine Weight	12T
Machine Size	14800 * 2400 * 1800mm
Glue Type	Water base glue/hot melt glue

Suitable Paper:Kraft paper,art paper (including film adhesive paper)
Paper need pre-creasing

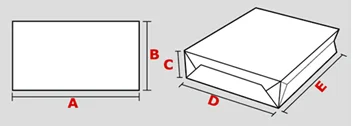

	A	B	C	D	E
Max. Size	1200mm	600mm	180mm	430mm	500mm
Min. Size	540mm	300mm	80mm	180mm	250mm

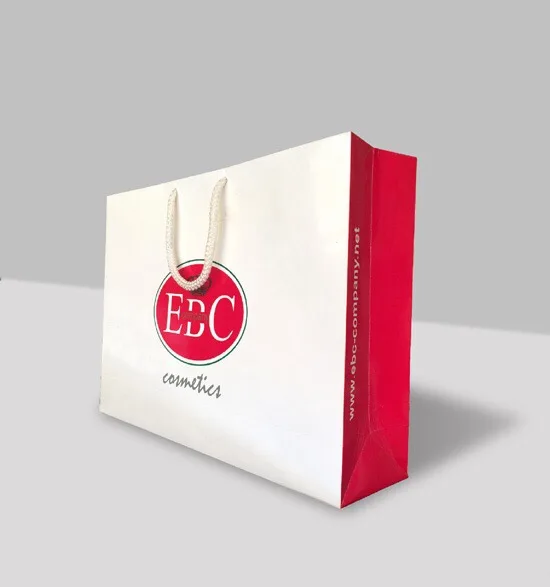

Applications

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
