High Speed Fully Automatic Flute Laminator Machine
PRY-E Fully Automatic Flute Laminator
Features
This machine can be used in color printing corrugated paper and corrugated paper laminating,tissue using scale continuous paper feeding,unique front gauge positioning way to insure the bottom paper never advance.Easy to operate,easy to maintain.
1.advanced automatic tracking technology,according to the paper automatically adjust the size of the relevant parameters,so that the machine running is always in the best condition;
2.unique front gauge positioning system,accurate,the bottom paper never advance; advance with adjustable amount of paper;
3.is equipped with high precision high speed automatic feeder,strengthening type paper feeding device,feeding smoothly;
4.using the principle of offset printing machine side plate positioning for about error correction paper stack of paper and feeding process;
5.at the end of the paper using automatic suction feeder,can adjust the size of the wind in the touch screen,and an optional belt humidifying function;
6.spare larryoy in the non-stop state pile under a pile of paper,along the rail into the elevator,high working efficiency;
7.imported electrical components,to ensure the stability of the circuit system.PLC tracking technology, automatic fault alarm;
8.full automatic glue supply system,can automatically add the loss of plastic,and with the glue recycling;
9.independent tank control water circulation,ensure the bottom paper back and dry, cleaning roller,spout, back glue tank;
10.single side adjustment of the pressure of the pressure roller,and equipped with a pressure scale display,the replacement of the end of the paper size adjustment in one step.
2.unique front gauge positioning system,accurate,the bottom paper never advance; advance with adjustable amount of paper;
3.is equipped with high precision high speed automatic feeder,strengthening type paper feeding device,feeding smoothly;
4.using the principle of offset printing machine side plate positioning for about error correction paper stack of paper and feeding process;
5.at the end of the paper using automatic suction feeder,can adjust the size of the wind in the touch screen,and an optional belt humidifying function;
6.spare larryoy in the non-stop state pile under a pile of paper,along the rail into the elevator,high working efficiency;
7.imported electrical components,to ensure the stability of the circuit system.PLC tracking technology, automatic fault alarm;
8.full automatic glue supply system,can automatically add the loss of plastic,and with the glue recycling;
9.independent tank control water circulation,ensure the bottom paper back and dry, cleaning roller,spout, back glue tank;
10.single side adjustment of the pressure of the pressure roller,and equipped with a pressure scale display,the replacement of the end of the paper size adjustment in one step.
Technical Parameters
|
PRY-E Semi-Automatic Flute Laminator
|
|||
|
Model
|
PRY-1300E
|
PRY-1450E
|
PRY-1650E
|
|
Max Sheet Size
|
1300*1250mm
|
1450*1300mm
|
1650*1450mm
|
|
Min Sheet Size
|
400*400mm
|
400*400mm
|
400*400mm
|
|
Top Sheet Thickness
|
150-500GSM
|
150-500GSM
|
150-500GSM
|
|
Bottom Sheet Thickness
|
A/B/C/E/F Corrugated paper, Industrial board
|
||
|
Max Speed
|
7000sheet/hour
|
7000sheet/hour
|
7000sheet/hour
|
|
Fitting Precision
|
±1mm
|
±1mm
|
±1mm
|
|
Dimensions
|
11.5*2*2.4M
|
11.5*2.2*2.4M
|
11.5*2.4*2.4M
|
|
Machine Weight
|
5000kgs
|
5500kgs
|
6000kgs
|
|
Machine Power
|
10KW/380V
|
11KW/380V
|
12KW/380V
|
Configuration

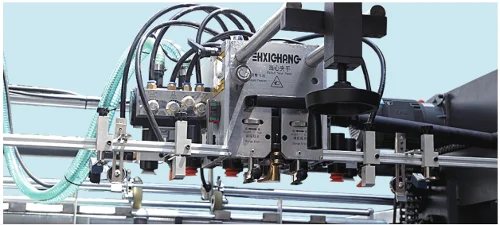

Top Sheet Feeding Mechanism
High precision high speed automatic feeder, feeding smoothly.Strengthening type paper feeding device,nozzle angle is adjustable,suitable for different type of papers.

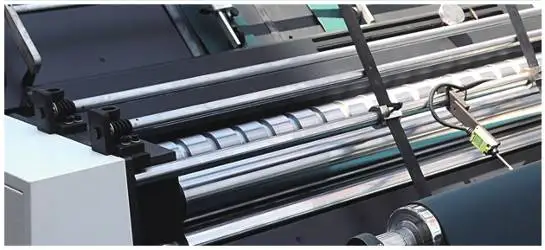

Side Positioning
Side Gauge Positioning, error correction for about top paper stack and feeding process;Similar with the principle of offset printing machine,positioning accuracy

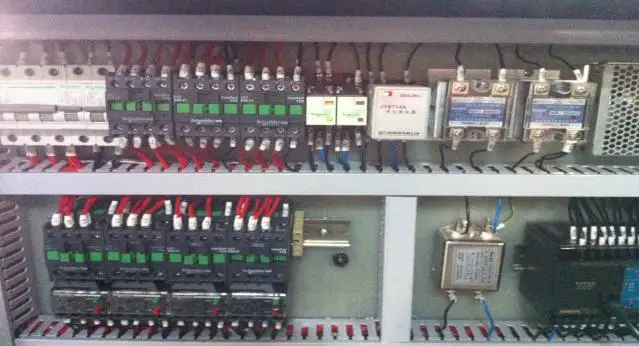

Electrical System
Main electrical components are imported brands;PLC tracking technology,automatic fault detection.

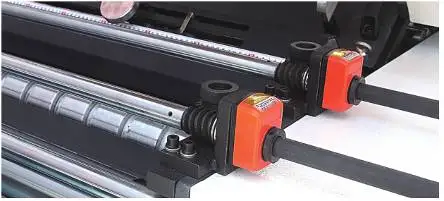

Pressure Regulation Positioning
Single pressure regulation,to ensure that the two side pressure be same;
With the display of dial gauge,it is easy to adjust when change the paper.

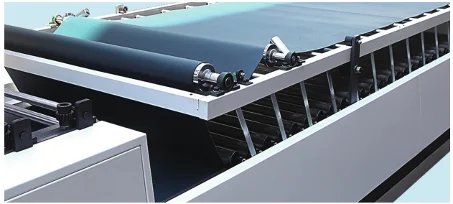

Pressure System
Floating design of press,no need to adjust the pressure;
Heightening design,smooth working for thick corrugated paperboard.
Heightening design,smooth working for thick corrugated paperboard.

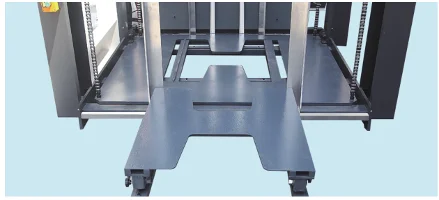

Pre-Stack Part
Standby stack table can pile paper under non-stop situation,along the rail into the elevator,high working efficiency.Using the "working" font design,the platform can be used to push and easy back,labor saving.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou, Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
