PRY-650 Automatic Water Base Varnishing UV IR Coating Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout

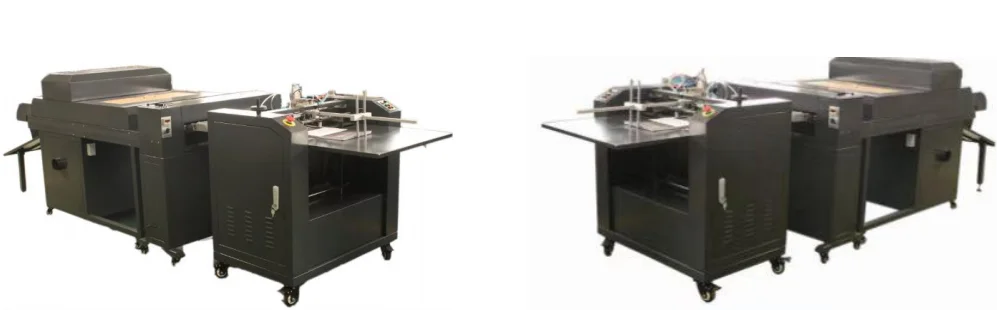

PRY-650 Automatic Water Base Varnishing UV IR Coating Machine
PRY-650 Automatic UV Coating Machine
Features
3 In 1,Can be used as paper feeder,UV coating and UV curing machine.
Easy to operate,fool operation without setting;
High effective,high speed can save one labour;
Low air pressure,200L/min;
Automatic feeding paper with a high pile up to 40cm;
Automatic cleaning system with two pump,one is for UV liquid,one is for alcohol cleaning;
Air knife to allow thin paper coated without curving;
Sensor for automatic stop roller if the paper go with roller;
Corona,stacker optional,Texture rollers opitional.
Easy to operate,fool operation without setting;
High effective,high speed can save one labour;
Low air pressure,200L/min;
Automatic feeding paper with a high pile up to 40cm;
Automatic cleaning system with two pump,one is for UV liquid,one is for alcohol cleaning;
Air knife to allow thin paper coated without curving;
Sensor for automatic stop roller if the paper go with roller;
Corona,stacker optional,Texture rollers opitional.
Performance And Characteristics:
This machineis an effective solution for sheet –fed UV coating,it can realize glossy or matte UV coating work automatically.Widely used in digital photographic,wedding photo studio, digital printing,packaging film and other industries.Solve the problems of high cost,waste of time,high error rate and easy falling off caused by traditional cold laminating.The coating effect is high clarity,high luster,environmental friendly,good toughness,waterproof,dust proof,no deformation and no foaming,low cost(only 0.02 USD/square meter),and the working efficiency is high.With working on UV coating machine for 20 years.Our machine is mature by constantly upgrading.And it has advanced technology by many years South Korean OEM Experiences.
This machineis an effective solution for sheet –fed UV coating,it can realize glossy or matte UV coating work automatically.Widely used in digital photographic,wedding photo studio, digital printing,packaging film and other industries.Solve the problems of high cost,waste of time,high error rate and easy falling off caused by traditional cold laminating.The coating effect is high clarity,high luster,environmental friendly,good toughness,waterproof,dust proof,no deformation and no foaming,low cost(only 0.02 USD/square meter),and the working efficiency is high.With working on UV coating machine for 20 years.Our machine is mature by constantly upgrading.And it has advanced technology by many years South Korean OEM Experiences.
Technical Parameters
|
PRY-650 Automatic UV Coating Machine
|
|
|
Available Size
|
24”(65Cm),36”(90cm)
|
|
Sheet Thickness
|
150g-1mm
|
|
Coating Speed
|
0-20m/min (speed adjustable)
|
|
Sheet Size(width)
|
65cm/90cm
|
|
Power
|
4.2KW220V, 2Ph, 50Hz/60Hz
|
|
Coating Liquid
|
0.3mic
|
|
Curing Way UV
|
3KW UV Lamp 1 Pc
|
|
Lamp Life
|
1500H
|
|
Dimension
|
112*200*132cm 107*140*132cm 140*200*132cm 132*140*132cm
|
|
Net Weight
|
580kgs/695kgs
|
Configuration
Feeder Coating Head and Curing Unit
Paper Fed 0 Error
Accurate strong pressure supply design assures that there is not fall when transmitting the paper.

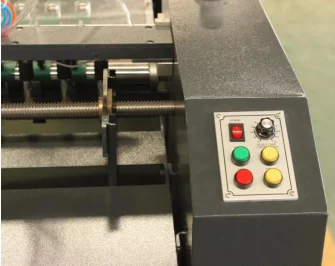

One Button Control
Easy & Safe operation
One button control realized by high sophistic system design,operating more easily
Easy & Safe operation
One button control realized by high sophistic system design,operating more easily
Paper Count
Recording function,Paper count device shows the quantity of coated paper clearly. helps to know the process of work
Recording function,Paper count device shows the quantity of coated paper clearly. helps to know the process of work
Rectification Belt
Automatic rectification of the belt makes the mesh belt run smoothly and avoid deviation.
Automatic rectification of the belt makes the mesh belt run smoothly and avoid deviation.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou, Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
