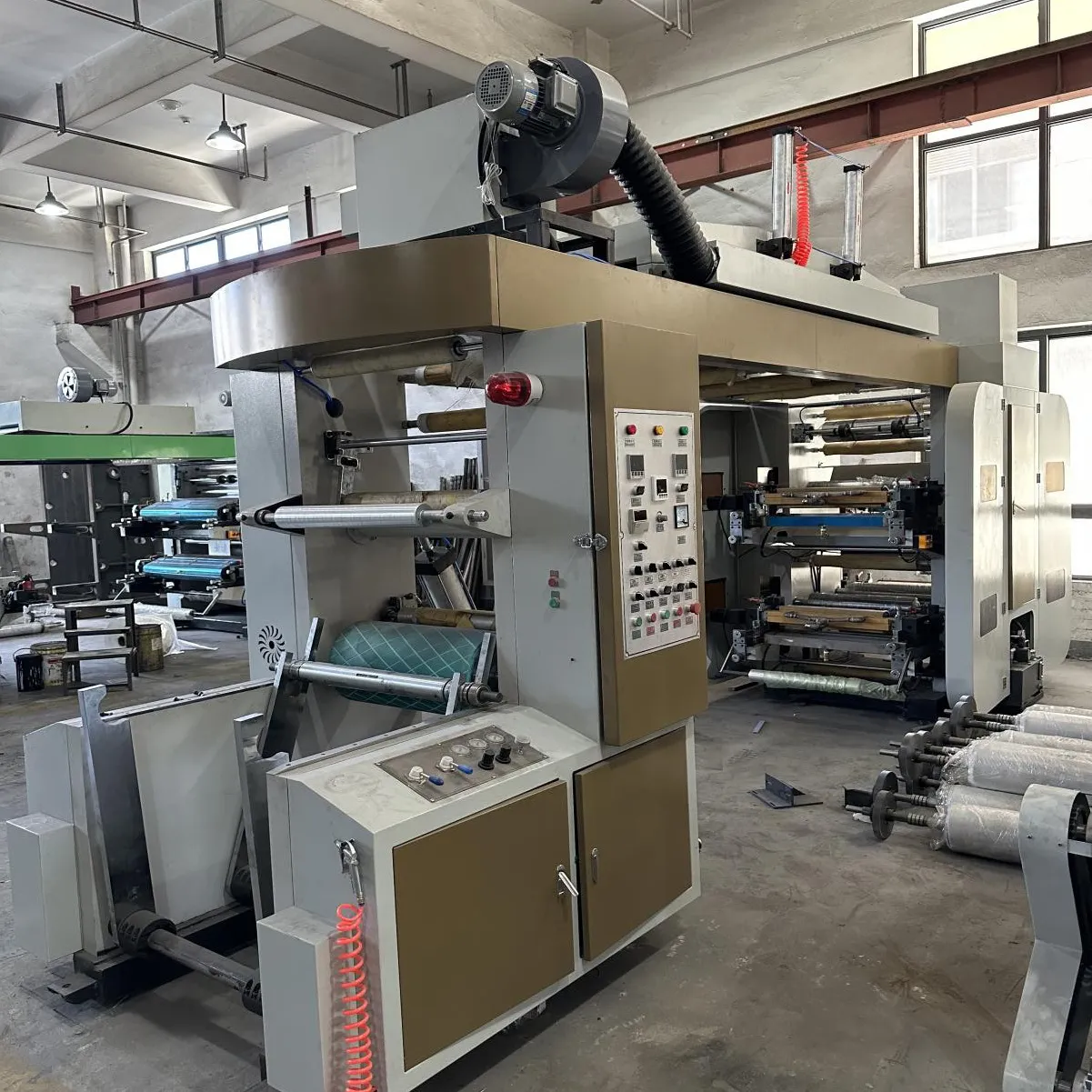

PRY4-1000 Four Colors Flexo Printing Machine
PRY4-1000 Four Colors Flexo Printing Machine
Features
This machine is a printing machine using a photosensitive resin soft plate as a plate material,commonly known as "aniline printing machine","flexographic printing machine", "embossing printing machine","flexo printing machine".Suitable for printing polyethylene, polypropylene,cellophane,plastic film(BOPP OPP PE PVC PET, etc.),non-woven fabric, woven bag,paper and other packaging materials,is food packaging,supermarket handbags,vest bags,clothing bags and other flexible packaging Ideal printing equipment.
Performance and Features:
Assembly of 75mm thick cast iron machine plate.
1.Simple operation, accurate color registration and long service life.
2.Adopt motor,frequency conversion speed regulation,save electricity,small fluctuation of operation.
3.The printing plate automatically stops the ink motor,and the printing device automatically starts the ink discharging device.
4.Adopt special timing belt drive,the printing size is accurate.
5.There is a hair dryer,in which the heating uses a central constant temperature control system and is controlled in groups.
6.The low roll is processed with special steel and processed by special process and electroplated with 10 wire thick hard chrome protective layer.
7.Aluminum alloy guide wheel for hard oxidation,dynamic balance,static balance treatment.
8.With cold air shaping bellows,it can effectively prevent defects such as ink sticking after printing.
9.The printed image is clear and the layering is strong.
Assembly of 75mm thick cast iron machine plate.
1.Simple operation, accurate color registration and long service life.
2.Adopt motor,frequency conversion speed regulation,save electricity,small fluctuation of operation.
3.The printing plate automatically stops the ink motor,and the printing device automatically starts the ink discharging device.
4.Adopt special timing belt drive,the printing size is accurate.
5.There is a hair dryer,in which the heating uses a central constant temperature control system and is controlled in groups.
6.The low roll is processed with special steel and processed by special process and electroplated with 10 wire thick hard chrome protective layer.
7.Aluminum alloy guide wheel for hard oxidation,dynamic balance,static balance treatment.
8.With cold air shaping bellows,it can effectively prevent defects such as ink sticking after printing.
9.The printed image is clear and the layering is strong.
Technical Parameters
|
Main Parameter
|
|
|
Model
|
PRY4-1000
|
|
Printing Material
|
paper
|
|
Max. Feeding Material Width
|
1000 mm
|
|
Max. Effective Print Length
|
300 ~ 1060 mm
|
|
Max. Mechanical Speed
|
110 m/min
|
|
Max. Printing Speed
|
0 ~ 90 m/min
|
|
Max. Effective Print Width
|
960 mm
|
|
Thickness of Plate(include the tape)
|
according to user’s request
|
|
Machine Power
|
50 kw
|
|
Machine Size
|
5.5 * 2.2 * 3.0 m
|
|
Unwinding Unit
|
|
|
Roller Width
|
1050 mm
|
|
Aix Diameter
|
76 mm
|
|
Max. Diameter of Unwind
|
1200 mm
|
|
Unwind Way
|
automatic pneumatic loading,10kg magnetic powder,automatic tension,EPC
|
|
Air Shaft
|
1 pcs
|
|
Traction Unit
|
|
|
Traction Part
|
alumnium roller and plating roller
|
|
Traction Zone
|
2 zones
|
|
Printing Unit
|
|
|
Printing Composition
|
plating roller,plate roller,anilox roller,rubber roller
|
|
Anilox Roller
|
ceramic anliox roller with single side doctor blade 4pcs
|
|
Plate Material
|
resin plate
|
|
Machine Drive
|
by synchronous belt
|
|
Register Color
|
by manual
|
|
Pressure Power
|
mechanical control
|
|
Printing Roller Control Up and Down
|
automatic hydraulic
|
|
Inking Way
|
ink motor
|
|
Heating Unit
|
|
|
Heating Way
|
electric heating,IR
|
|
Heating Zone
|
2pcs independent heating zone
|
|
Heating Power
|
35 kw
|
|
Auxiliary Drying Length
|
2.5 meter
|
|
Blower
|
1.5kw / 2pcs
|
|
Wind Channel
|
double air return air treatment
|
|
Electric Unit
|
|
|
Main Motor
|
3.7kw / TAIWAN DETLTA
|
|
Ink Motor
|
4pcs
|
|
Inverter
|
3.7kw / TAIWAN DETLTA
|
|
Rewind Unit
|
|
|
Roller Width
|
1050 mm
|
|
Aix Diameter
|
76 mm
|
|
Max. Rewind Dia.
|
1200 mm
|
|
Rewind Way
|
2.2kw independent motor,surface friction winding,
automatic pneumatic unloading and tension float roller 2.2kw |
|
Air Shaft
|
1 pcs
|
Configuration
1.The fuselage adopts 75mm thick wall panel,increase the balance bar and other enhanced machine stability.
2.The printing stick adopts an enlarged thick steel bar and is plated with a 10 wire thick hard chrome protective layer for polishing.The aluminum alloy guide wheel is subjected to hard oxidation,dynamic balance and static balance treatment.
3.High-precision widening synchronous belt drive,low noise when the machine runs at high speed,low vibration makes the machine more stable,the plate roller gear is driven by special helical gear,the printing length of each tooth is 5mm,the printing effect is more stable,the printing length is more precise.
4.Printing unit
5.Unwind/rewind
6.Heating unit
