PRY85 Series Digital Paper Plotter Corrugated Carton Cutting Box Sample Maker Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
PRY85 Series Digital Paper Plotter Corrugated Carton Cutting Box Sample Maker Machine

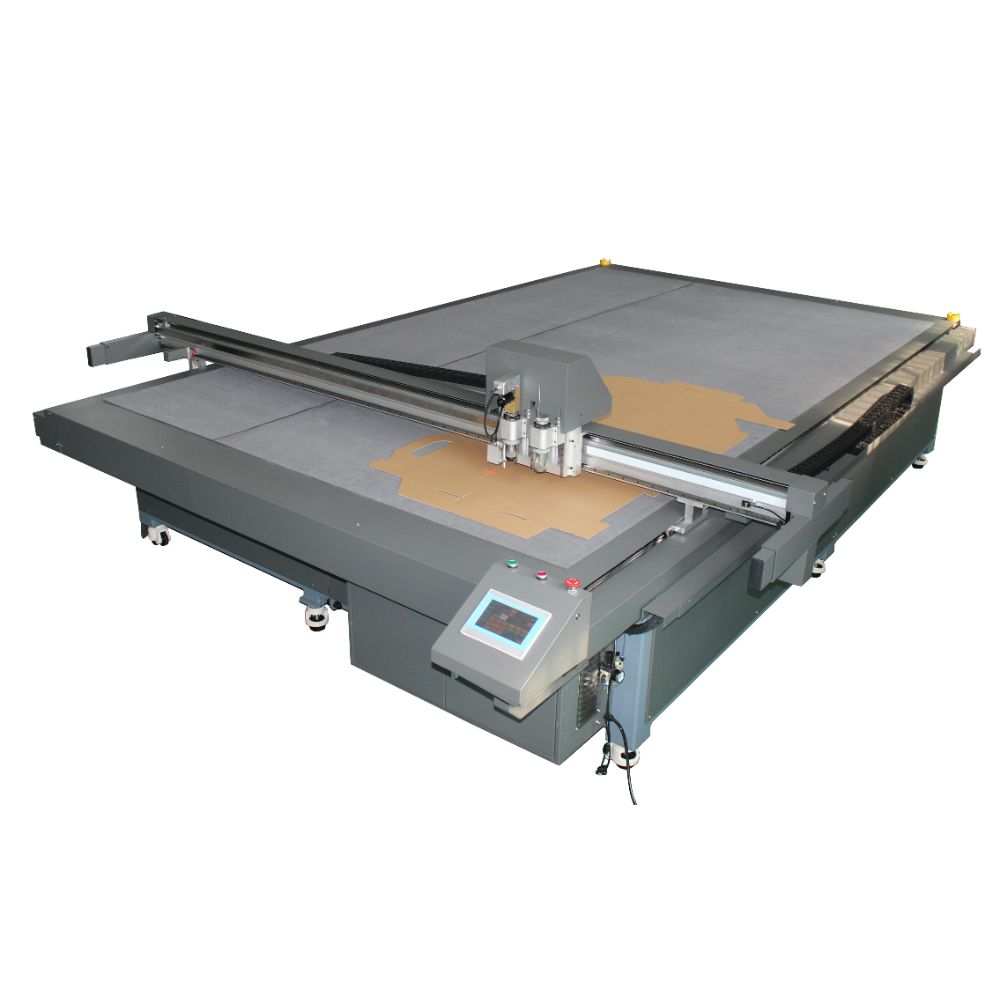

PRY85 Series Digital Box Sample Maker
Features
PRY85 series high speed flatbed digital cutter specially equips the vibrating knife, creasing wheel,drag knife,v cut knife and pen,it can cut many kind of materials,such as PP sheets, corrugated paper,honeycomb board,card paper,foam,grey board,KT board,PVC expansion sheet and also the ads and display industry’s materials PVC and so on.PRY85 is more flexible and broaden the cutting application.It can be used to cutting,sampling,and small production for the packing,printing,ads and display industries.
* New steel frame design, more stable of machinery
* TWO independent module design, broaden the application
* Exchangeable tools, better expansion
* New honeycomb bed and vacuum area design, stronger suction
* Max cutting thickness up to 50mm
* TWO independent module design, broaden the application
* Exchangeable tools, better expansion
* New honeycomb bed and vacuum area design, stronger suction
* Max cutting thickness up to 50mm
Technical Parameters
|
PRY85 Series Digital Box Sample Maker
|
|||
|
Model
|
PRY85-1310
|
PRY85-1815 | PRY85-2516 |
|
Working Range
|
1300 * 1000 mm
|
1800 * 1500 mm | 2500 * 1600 mm |
|
Occupy Dimension
|
1940 * 2035 * 1290 mm
|
2740 * 2235 * 1290 mm | 3440 * 2335 * 1290 mm |
|
Standard Tool
|
Oscillating knife , drag knife , creasing tool , pen , laser light
|
||
|
Optional Tool
|
V cut knife , foam knife , video registration system
|
||
|
Cutting Materials
|
Corrugated paper , honeycomb board , corrugated plastic board
PP board , gray board KT board , foam , EVA , cardboard , etc
|
||
|
Cutting Thickness
|
50 mm
|
||
|
Cutting Speed
|
1200 mm/s
|
||
|
Cutting Precision
|
0.1 mm
|
||
|
Repeated Accuracy
|
0.05 mm
|
||
|
Safe Device
|
Physical anti-collision mechanism + infrared induction
anti-collision to ensure production safety
|
||
|
Fix Method
|
Vacuum suction
|
||
|
Interface
|
Ethernet port
|
||
|

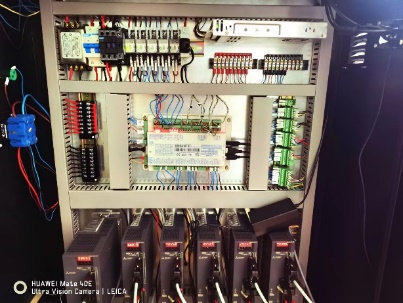

Control System
|
Intelligent digital control servo system
|
||
|
Driving System
|
Belt or gear-rack
|
||
|
Data Format
|
DXF , HPGL compatible format
|
||
|
Control Panel
|
Multi-language LCD touch panel
|
||
|
Suction Power
|
3 kw
|
7.5 kw | 7.5 kw |
|
Power Supply
|
Machine : AC 220V 50 - 60 Hz Vacuum pump : 380 V 50 - 60 Hz
|
||
|
Working Environment
|
Temperature : - 10 - 40 degree celsius Humidity : 20% - 80%RH
|
||
Configuration
Steel structure
Honey board bed (Honeycomb Aluminum bed)(whole design,won’t bend)
Mitsubishi brand servo motor and driver
Transfer Port(Ethernet port,USB port,Udisk)
Tool head
Touch screen
Language:English,Spanish,French,German,Polish,Portuguese,Russian,Korean,Vietnamese,Indonesian,Italian,
Turkish,Arabic,Finnish,etc.
File format:DXF,PLT,AI,PDF,ETC.
Samples
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou, Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa, Morocco and Italy.
