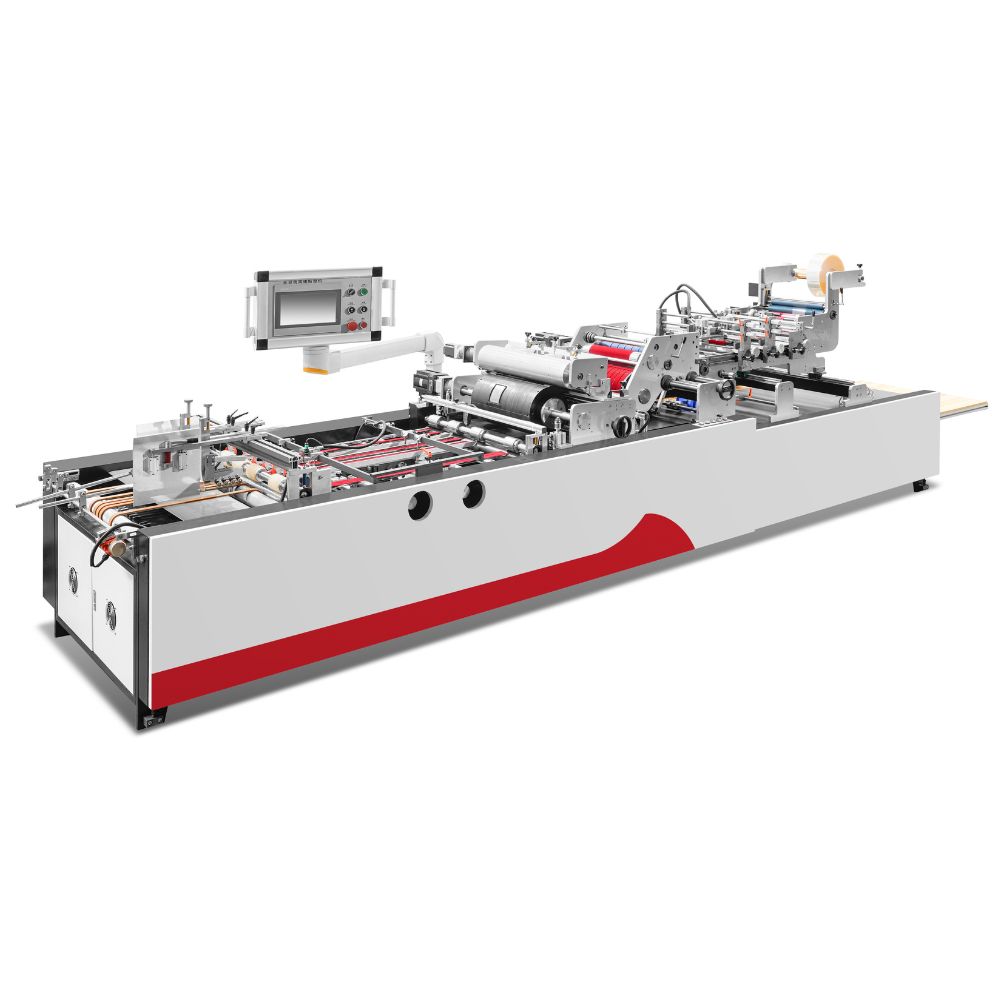

TC-880A Fully Automatic Window Patching Machine with Punching and Creasing
TC-880A Automatic Window Patching Machine
Features
Full automatic window patching machine is used for patching window by film on paper. It can accept PP film,PET film,PVC film and so on.Its max capacity is 10000 pieces for one hour.It can produce tissue boxes,gift boxes, toy boxes,shirt boxes,milk cartons and other window boxes.
Technical Parameters
|
TC-880A Automatic Window Patching Machine
|
|
|
Model
|
TC-880A
|
|
Cardboard Weight
|
200 g/m² - 1000 g/m²
|
|
Output per Hour
|
10000 pieces
|
|
Size Range of Cardboard
|
Min.150 mm x 160 mm Max.780 mm x 880 mm
|
|
Size Range of Window
|
Min.30 mm x 50 mm Max.350 mm x 400 mm
|
|
Accuracy
|
±0.5 mm
|
|
Film Thickness
|
0.04 mm - 0.25 mm
|
|
Connected Load
|
12 kw
|
|
Weight
|
2800 kg
|
|
Dimensions
|
6700 mm x 1700 mm x 1600 mm
|
Configuration
The paper feeder is controlled by servo motor,the belt is from Poland.No-stop feeding paper,no overlapping paper or missing paper.
The paper moving system adopt pushing chain and air sucking belt.They have positioning function,insure the paper comes same place in same time.

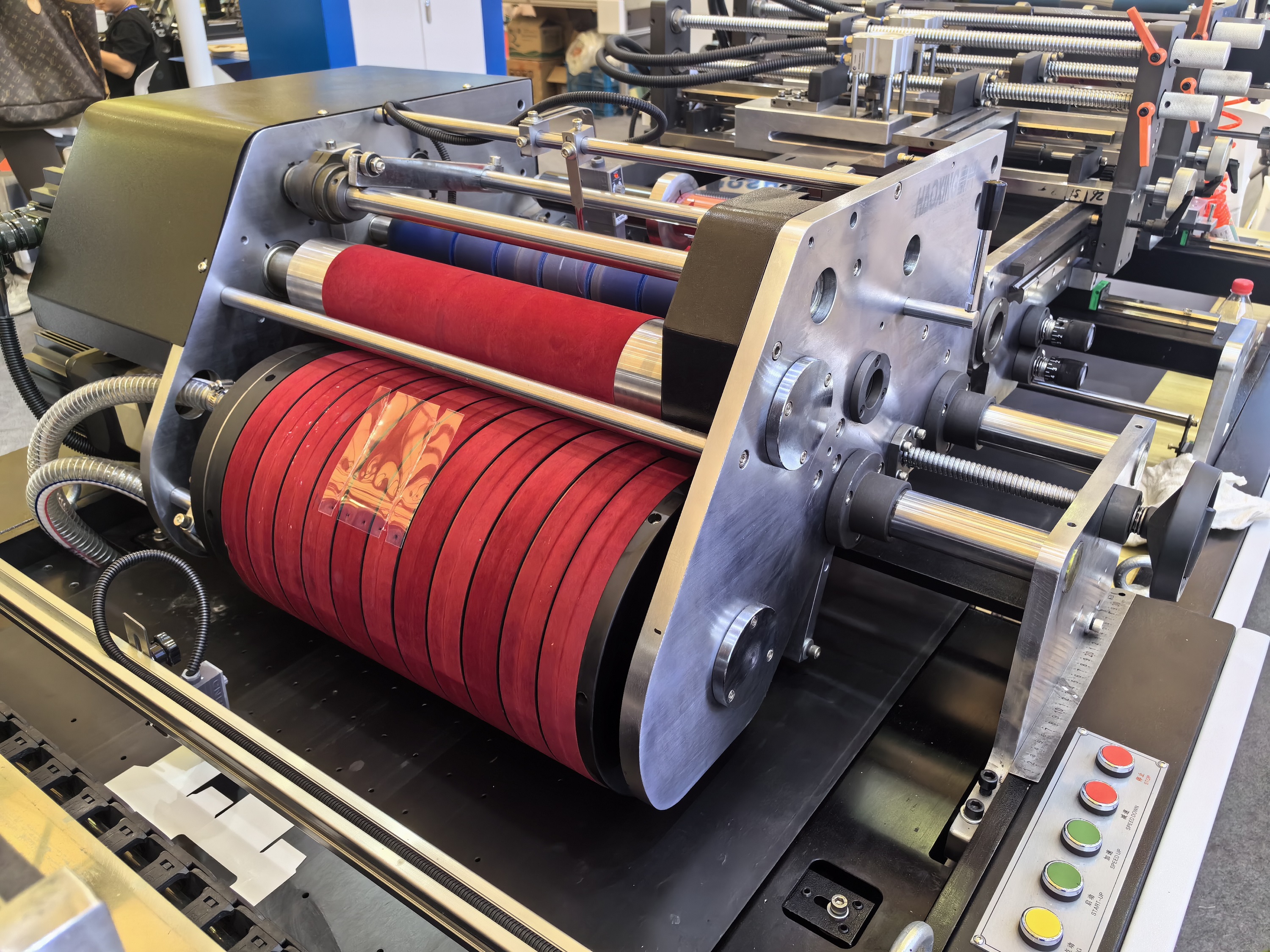

Glue part adopt flexo printing technology.We can adjust the place of glue on the paper without any stop.When missing paper,glue part will up in case of the glue leaves on the air sucking belt.
Film cutting part adopt our patented technology and design.The film length is controlled by servo motor in PLC. The place of paper is controlled by cylinder.Because of this set of design,the accuracy is ±0.5mm.There are letter embossing function, heating roller section function,print register camera sensor function for option.
Applications
Punch & crease window patching machine is widely used for patching the window on the liquor box,gift box, cosmetic box,toy box and so on.It has punching and creasing function, special for corner window.It is the best machine for patching corner window.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou, Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa, Morocco and Italy.
