TC-650A Fully Automatic Paper Cake Gift Box Window Film Patching Machine Cardboard

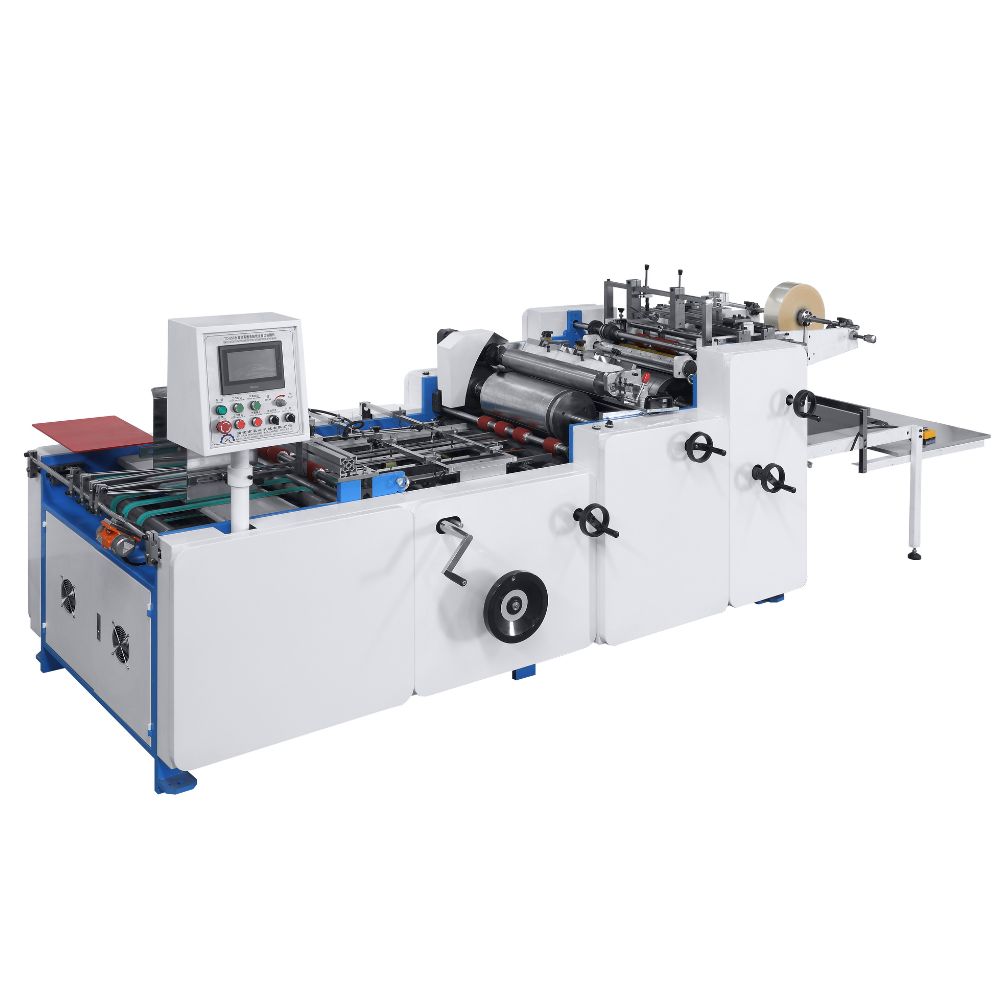

TC-650A Window Patching Machine
Features
Full automatic window patching machine is used for patching window by film on paper. It can accept PP film,PET film,PVC film and so on.Its max capacity is 10000 pieces for one hour.It can produce tissue boxes,gift boxes, toy boxes,shirt boxes,milk cartons and other window boxes.
Technical Parameters
|
TC-650A Window Patching Machine
|
|
|
Model
|
TC-650A
|
|
Paper Thickness
|
200 - 1000 gsm
|
|
Capacity
|
12000 pcs/hour
|
|
Min Paper Size
|
150 x 160 mm
|
|
Max Paper Size
|
560 x 650 mm
|
|
Min Window Size
|
30 x 50 mm
|
|
Max Window Size
|
300 x 350 mm
|
|
Accuracy
|
±1 mm
|
|
Film Thickness
|
0.05-0.25mm
|
|
Total Power
|
6.4 kw
|
|
Machine Weight
|
2500kg
|
|
Machine Size
|
4500x1200x1600mm
|
Configuration
Window patching machine is widely used for patching the window on the liquor box, gift box,tissue box,cosmetic box,toy box and so on.
The paper feeder is controlled by servo motor,the belt is from Poland.No-stop feeding paper,no overlapping paper or missing paper.

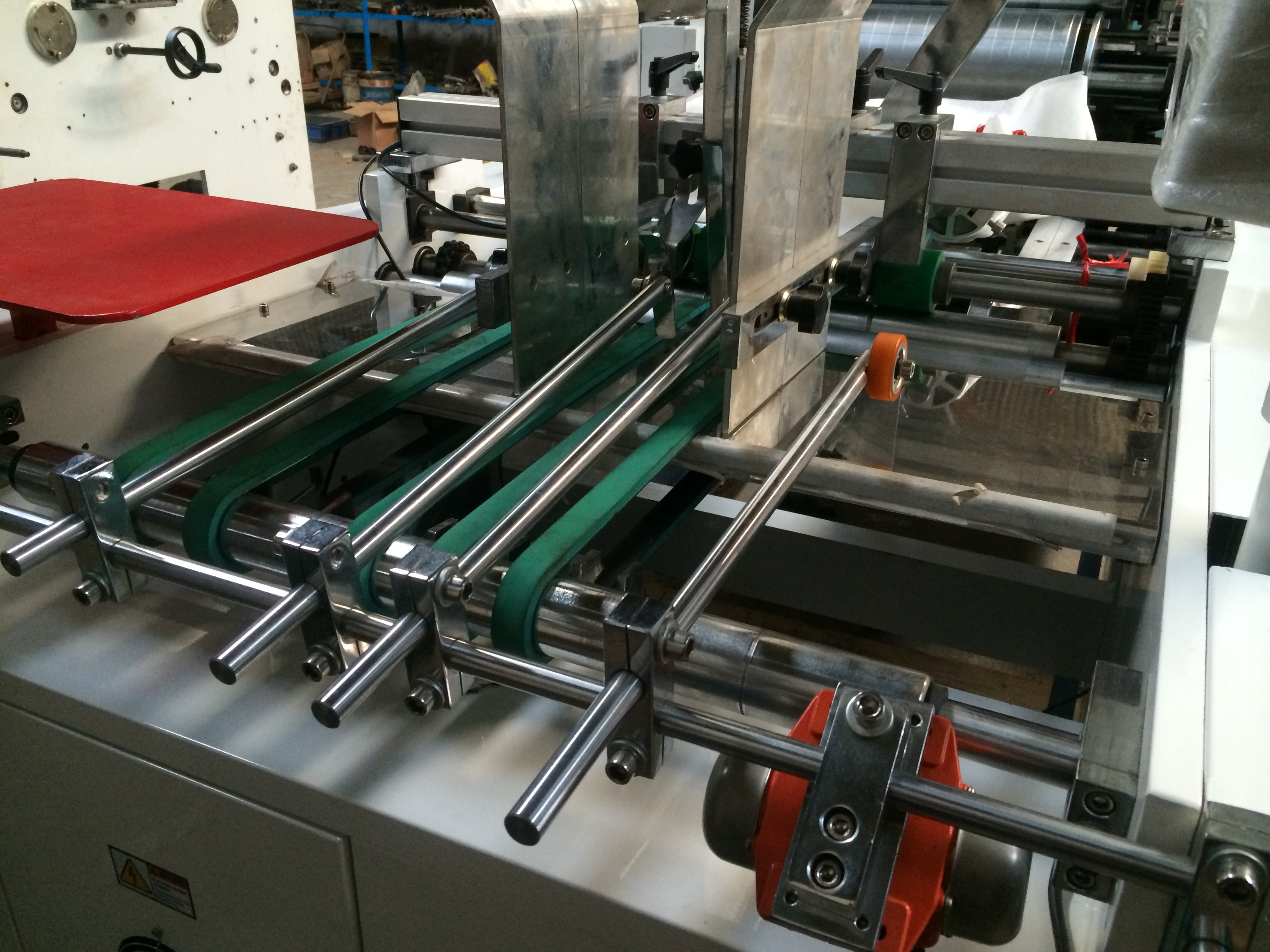

The paper moving system adopt pushing chain and air sucking belt.They have positioning function,insure the paper comes same place in same time.

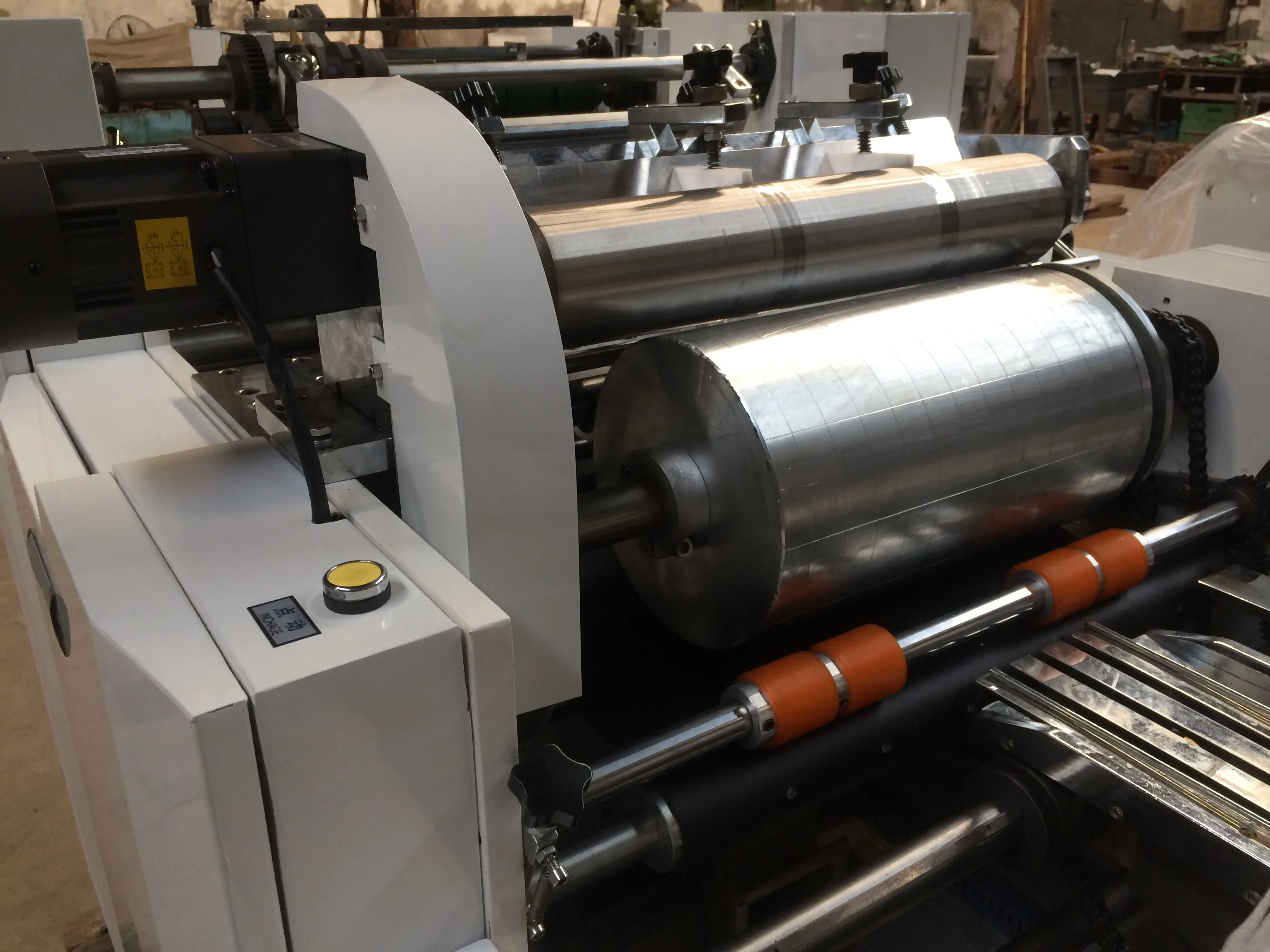

Glue part adopt flexo printing technology.We can adjust the place of glue on the paper without any stop.When missing paper,glue part will up in case of the glue leaves on the air sucking belt.
The film cutting part adopt roll-knife.It is controlled by servo motor so that we can adjust the film length without stop in the PLC.It also can adjust the place of film on the paper without stop.It has special knife to cut film for tissue box.When it is patching window with punching and scoring,the speed is around 4000 pcs for one hour,and the accuracy is ±1 mm.

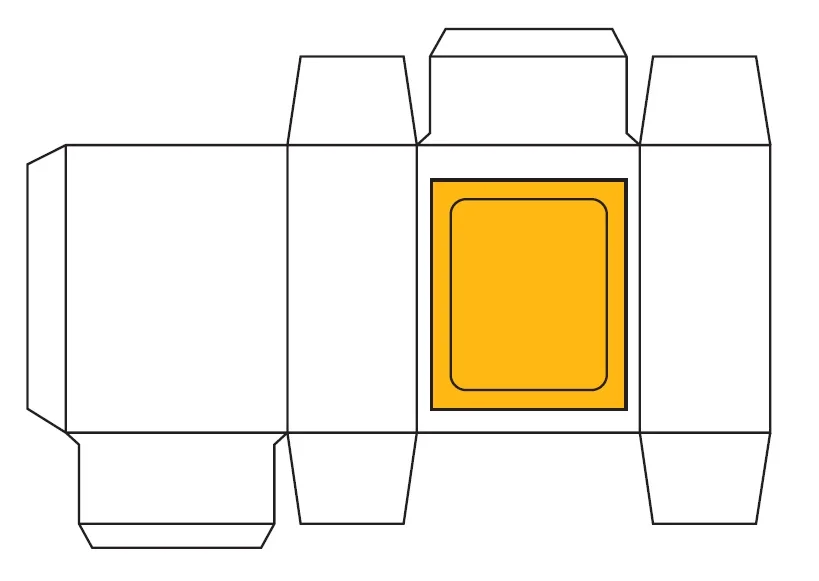

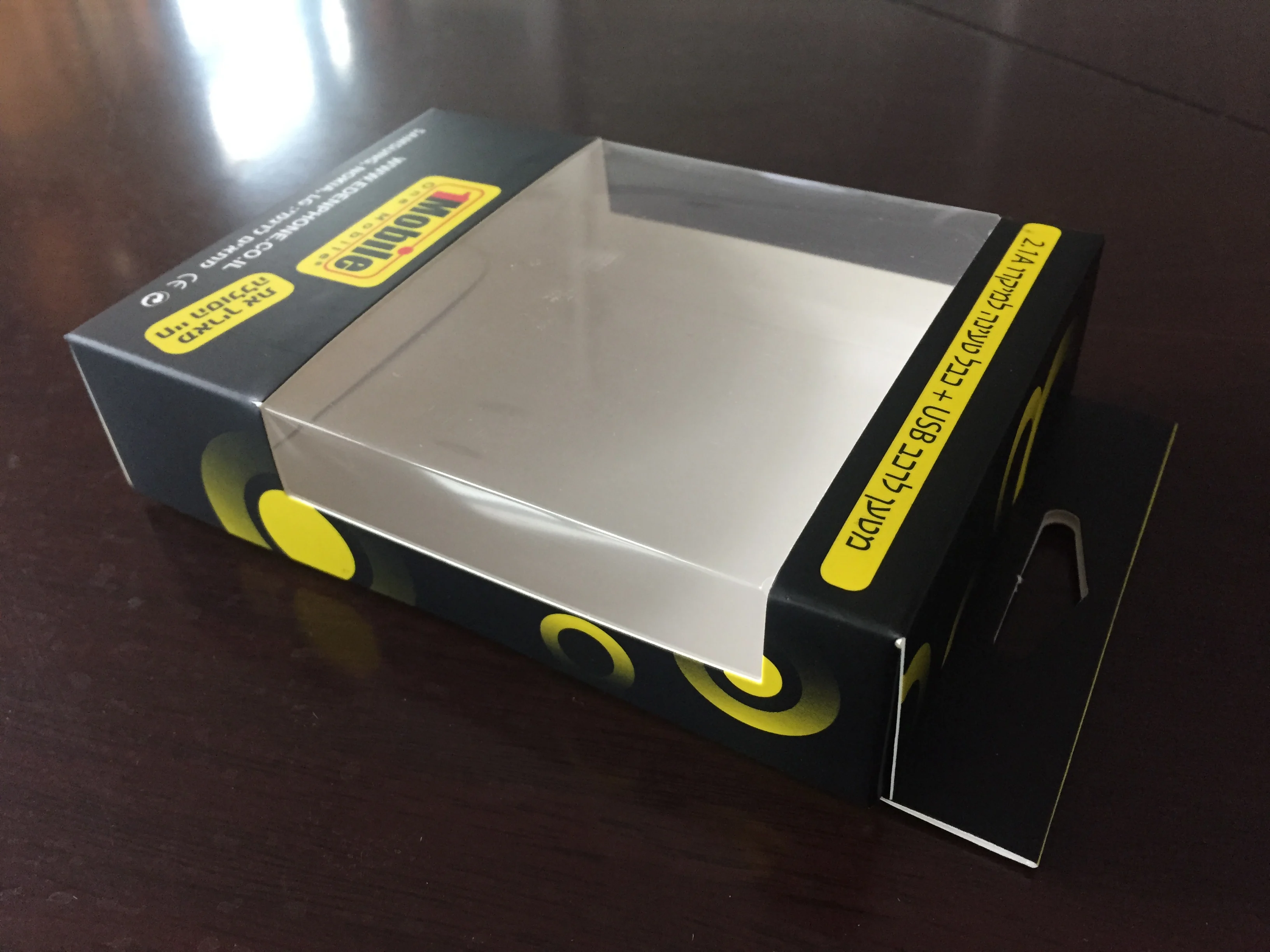

Sample Show
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou, Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa, Morocco and Italy.
