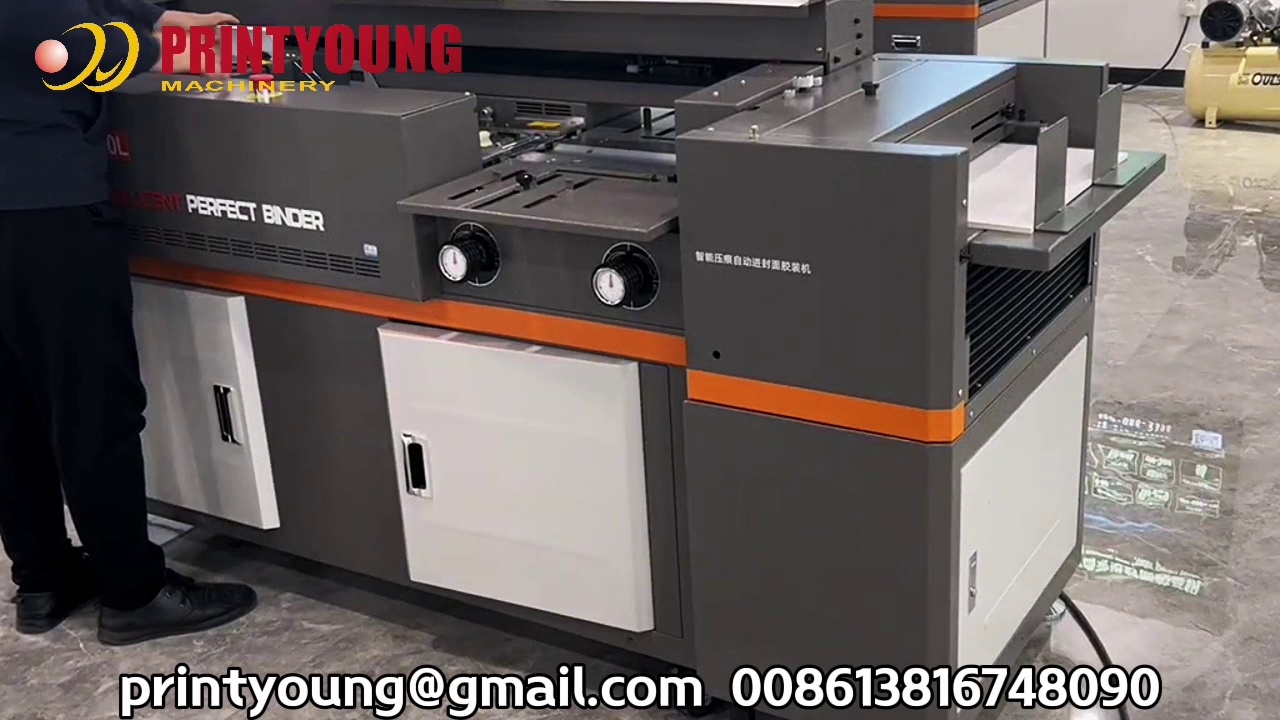

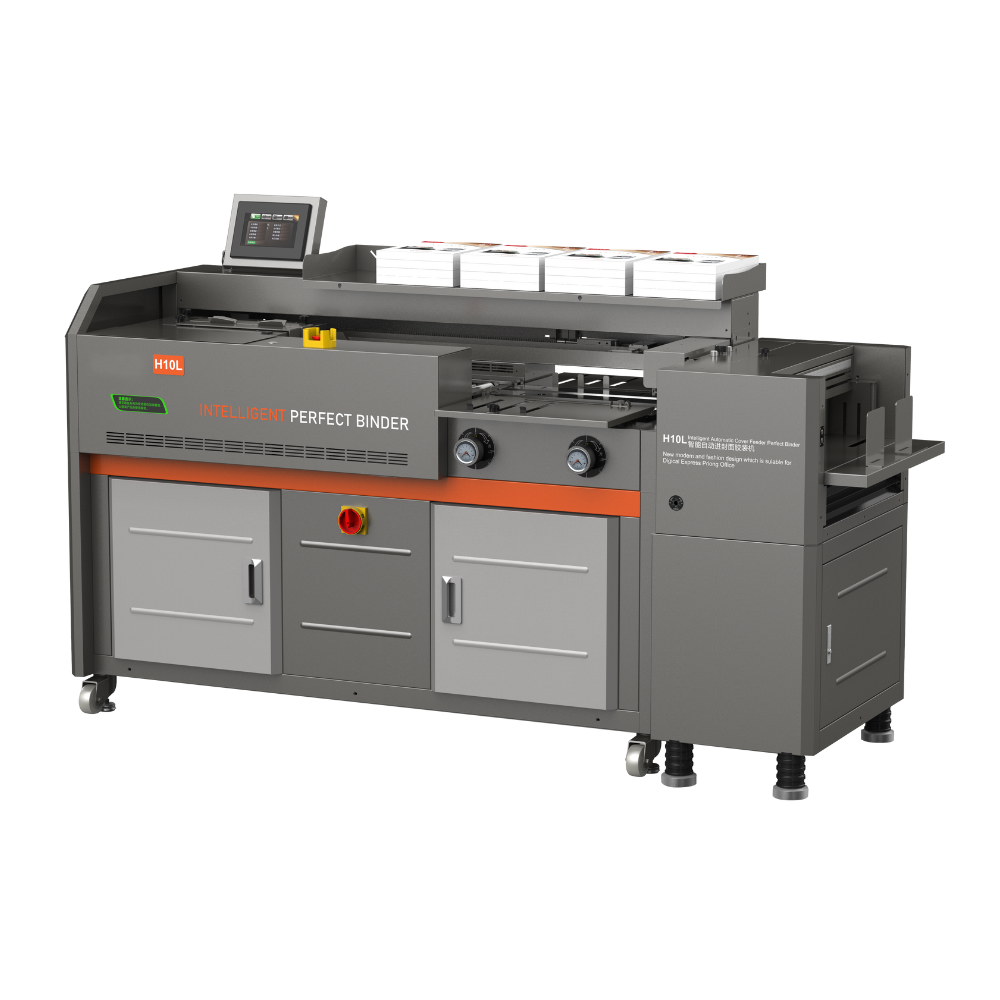

H10L A4 Intelligent Automatic 7.0" Touch Screen Feeding Glue Book Binding Machine with Feeding Cover
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
H10L A4 Intelligent Automatic 7.0" Touch Screen Feeding Glue Book Binding Machine with Feeding Cover
H10L Glue Binding Machine
Technical Parameters
|
H10L Glue Binding Machine
|
|
|
Book Length(with Feed Cover)
|
120 ~ 330 mm
|
|
Book Length(without Feed Cover)
|
120 ~ 425 mm
|
|
Book Thickness
|
0.2 ~ 60 mm
|
|
Book Height
|
135 ~ 297 mm
|
|
Cover Size(with Feed Cover)
|
500 * 330 mm
|
|
Cover Size(without Feed Cover)
|
660 * 425 mm
|
|
Cover Thickness
|
120 ~ 300 g
|
|
Cover Feeder Capacity
|
98 mm
|
|
Number of Creases
|
2 Convex Spine Lines , 2 Concave Flipping Lines
|
|
Distance of the Spine Lines
|
2 ~ 60 mm
|
|
Distance between the
Spine Line and the Flipping Line
|
8 mm
|
|
Pre Heating
|
25 ~ 45 minutes(Depending on Ambient Temperature)
|
|
Side Glue
|
YES
|
|
Rubber Wheel
|
2
|
|
Cycle Speed
|
350 ~ 400 books/h
|
|
Cutter
|
20-Tooth Sun Cutters + 2 Small Milling Cutters
|
|
Display
|
7.0" Touch Screen
|
|
Smoke Evacuation Equipment
|
Optional
|
|
Power
|
220V 50Hz / 60Hz ; 2.6 kw
|
|
Dimensions
|
1985 * 710 * 1260 mm
|
|
Weight
|
300 kg
|
Configuration
22-tooth sun cutter 2 small milling cutters
Automatic automatic feeding technology
Completes the creasing of flipping lines and spine lines in one go,enhancing the binding effect of the book.
Automatic secondary positioning of the cover to resolve issues with cover position deviation.
New patented finishing rubber technology
7.0-inch touch screen, intelligent operating system
Linear guide rail + circular guide rail combination, providing better stability for machine operation.
Smoke extraction device.(optional)
Integral cast aluminum glue pot With side glue,two rubber wheel.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
