Home > Products > Post-Press > MCM-200 PLC Control Hydraulic Label Punching Die Cutter Machine

MCM-200 PLC Control Hydraulic Label Punching Die Cutter Machine

MCM-200 PLC Control Hydraulic Label Punching Die Cutter Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

MCM-200 PLC Control Hydraulic Label Punching Die Cutter Machine

MCM-200 Label Punching Die Cut Machine

Features

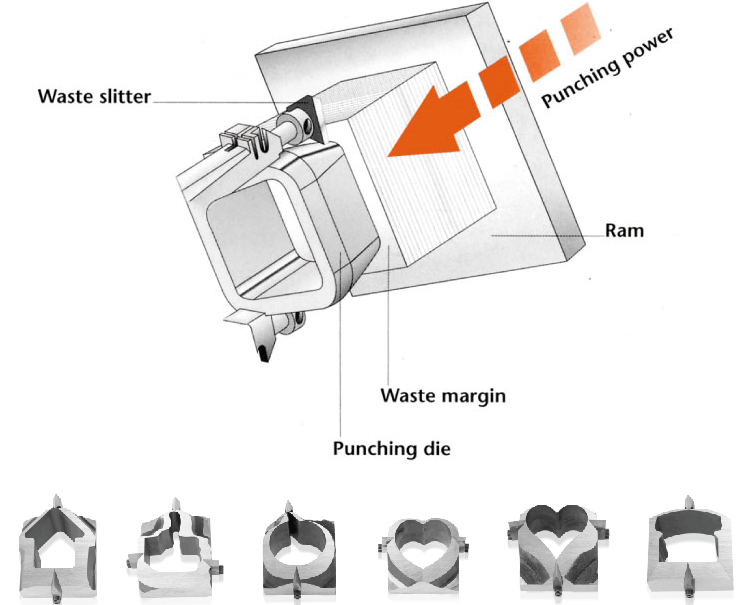

MCM-200 "punching-king" machine is a new technology punching machine,it was designed by our company based on years of production of labels.The machine is controlled by PLC.All components can be achieved 0.1mm.The machine is mainly used for all kinds of label cutting processing,after using by professional beer and label manufacturers,it proved that the machine has high efficiency,precision die-cutting accuracy and so on.

Technical Parameters

MCM-200 Label Punching Die Cut Machine
Model	MCM-200
Max. Cutting Size	150 × 150 mm
Min. Cutting Size	30 × 50 mm
Cutting Stroke	250 mm
Motor Power	5.6 kw
Air Pump	0.5 ~ 0.8 Mpa
Net Weight	1000 kg
Packing Size	1600 × 950 × 1200 mm

Applications

It suits for all kinds of special-shaped die cutting,such as various types of beer labels,food and beverage labels,cards etc.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
