PRY-115S Dual Hydraulic Double Guide Rails Programmed Control Paper Cutting Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout

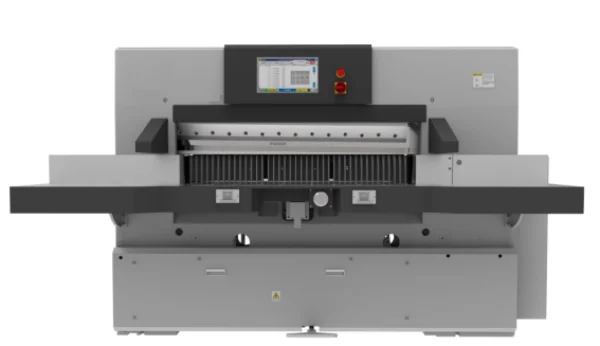

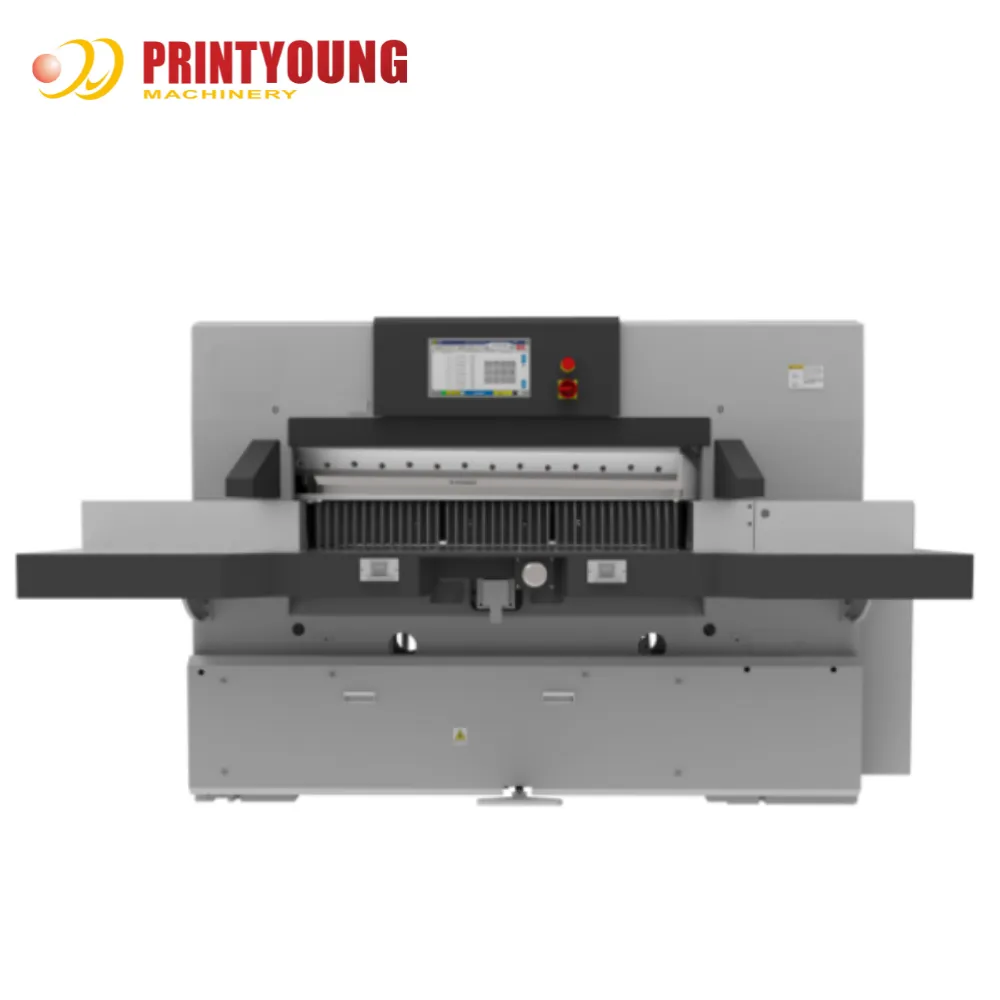

PRY-115S Dual Hydraulic Double Guide Rails Programmed Control Paper Cutting Machine
PRY-115S Programmed Control Paper Cutter
Features
It equipped AC digital servo controlling technology and 15.6 inches colorful touching screen,double hydraulic system,the data resolution rate is 0.01mm,full touch operating system for human computer interface,has self-diagnostic function of troubles and displays the operating pattern,100 program units,over 10000 different cutting positions,it can memorize,store and dynamic follow-up.The max paper-pushing speed is 5-15m/min.It adopts Japanese hydraulic components,Japan and Korean electric components.Japan、Taiwan ball lead screw and linear double guide-rail,PLC control system for electric configuration,Its key parts adopt imported bearing of low maintenance.IR ray protective device is more convenient for cutting with optical knife-line alignment,button operated by two hands,single circulation cutting device ect.
Technical Parameters
|
Model/Specifications
|
PRY-115
|
|
Cutting Width
|
1150 mm
|
|
Max. Cutting Height without Assistance Pressing Plate
|
165 mm
|
|
Max. Cutting Depth
|
1150 mm
|
|
Min. Cutting Depth without Assistance Pressing Plate
|
30 mm
|
|
Extended Length of Working Table
|
730 mm
|
|
Height of Working Table
|
880 ~ 920 mm
|
|
Machine Width Including Side Working Table
|
2660 mm
|
|
Total Length of Working Table
|
2260 mm
|
|
Cutting Speed
|
45 r/min
|
|
Max. Paper Pressure
|
40000 N
|
|
Power of Main Motor
|
4 kw
|
|
Motor for Paper Feeding
|
0.75 kw
|
|
Air Pump
|
0.75 kw
|
|
Machine Weight
|
3900 kg
|
|

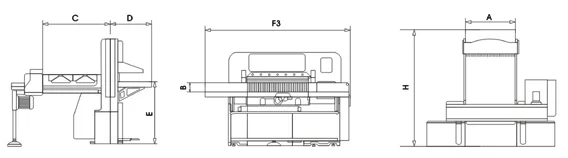

Overall Dimension
|
2520 * 1430 * 1980 mm
|
