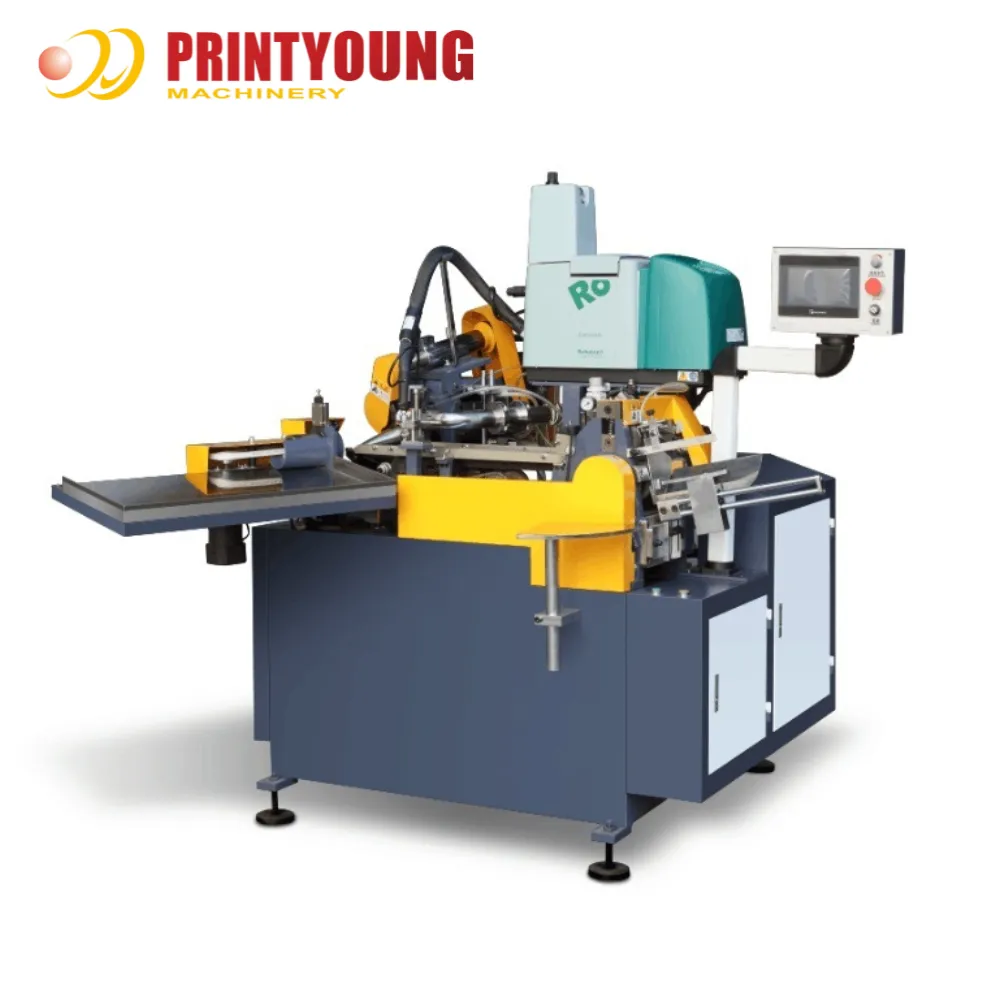

PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine

PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine

008618017382810

008613816748090

printyoung@gmail.com

8618017382810

PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 0
PRY-300 Paper Cone Sleeve Making Machine
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 1PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 2
Features
The fully servo-driven automatic paper cone sleeve machine can produce ice cream paper cone sleeves and other similar paper cone sleeves.The angle range of the produced paper cone sleeves is 17-23 degrees(by changing the moulds).The machine speed can reach 260-280 pieces per minute.The main components are of international renowned brands such as Schneider,Panasonic,and Robatex.The machine is applicable to different paper materials such as art paper,aluminum-coated paper,and offset paper.
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 3PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 4
Special materials made of cone mold has a very long service life.
Switzerland Robatech boriginal nozzle at the bottom of the bonding more solid.
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 5PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 6
The conveying paper is simple and stable.
Discharge waste and the vacuum is the integration of the whole machine.
Technical Parameters
Model PRY-220 PRY-300
Speed
 190 ~ 230 pcs/min
260 ~ 280 pcs/min
Paper Cup Size
4 ~ 10 oz
Cone Angle
17 ~ 23 degree
Cone Length
 100 ~ 230 mm
90 ~ 185 mm
Paper Thickness
80 ~ 170 gsm
Raw Material
art paper/aluminized paper/offset paper/wax paper etc.
Electricity
220V 50Hz 1phase , 380V 50Hz 3phase or customize
Power
 9 kw
4.5 kw
Net Weight
1000 kgs
Dimension
1850 * 1750 * 1800 mm
Configuration
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 7PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 8
PLC control,touch screen operation
The daily production on the touch screen and reset the calculation every day.
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 9PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 10
Automatic trimming,automatic waste suction and discharge.
Automatically discharge tubes in piles,and the number of tubes in each pile can be adjusted.
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 11PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 12
Robatech glue box.
SMC solenoid valve imported from Japan.
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 13PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 14
Encoder.
The paper conveying part adopts vibrator.
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 15
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 16
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 17
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 18
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 19
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 20
PRY-220/300 High Speed Ice Cream Cone Type Paper Cup Sleeve Forming Making Machine 21
