PRY-420 Full-automatic High Speed Reciprocating Type Heat Shrink Sealing Packaging Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout

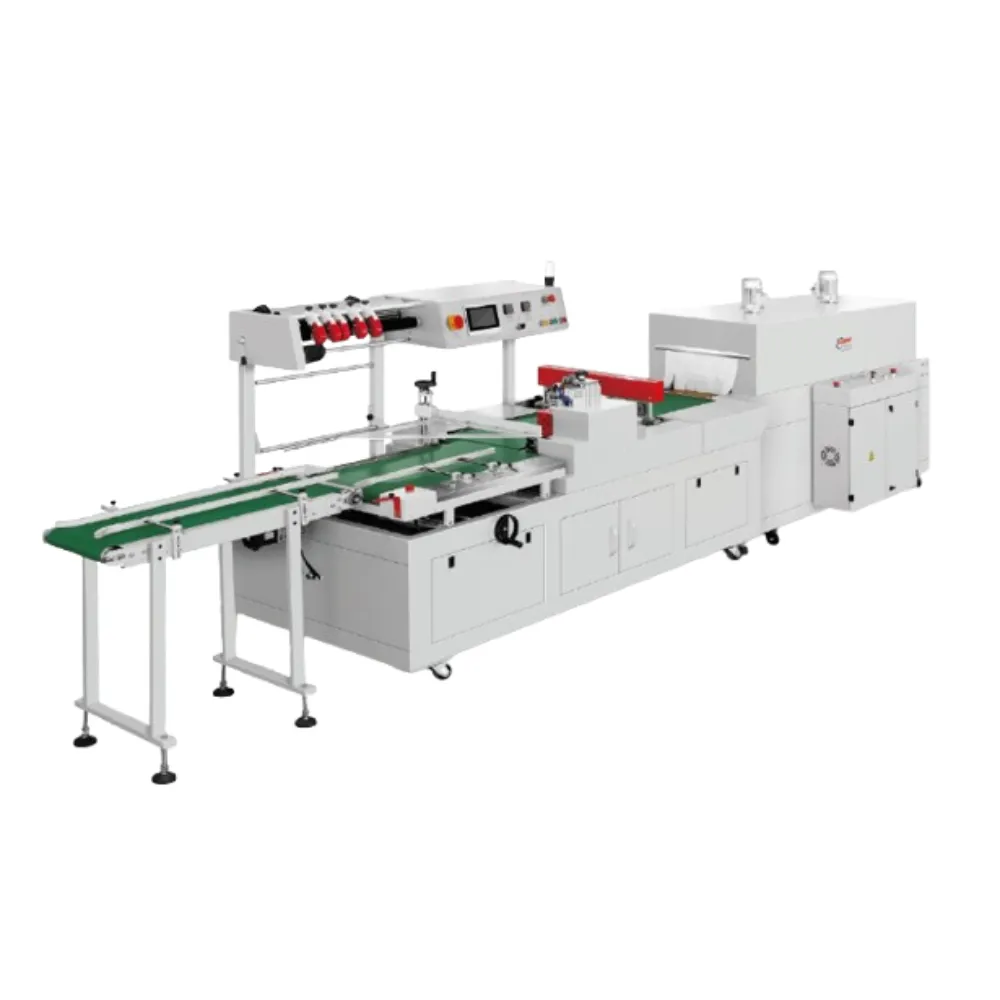

PRY-420 Full-automatic High Speed Reciprocating Type Heat Shrink Sealing Packaging Machine

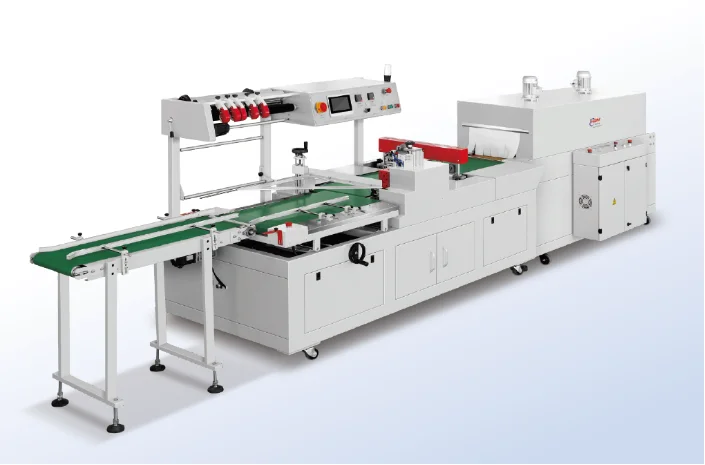

PRY-420 Shrink Packaging Machine
Features
1.PRY-420 is a fully automatic shrink packaging machine including l sealer and shrink tunnel which can feed products,seal and cut film and shrink film bag automatically.
2.Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better performance of heat conduction.
3.Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes.packing length can be detected by the sensor automatically.
4.Different products with different sizes can be packed together as promotional package.
5.Adopt Omron brand parts such as temperature controller,timer,relay,switch,and sensor.
6.Alarm for scrap film break or full.
7.A pair of photoelectric switches in vertical for thin products.
8.Optional closing conveyor for small products.
9.Optional sensor for transparent products.
2.Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better performance of heat conduction.
3.Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes.packing length can be detected by the sensor automatically.
4.Different products with different sizes can be packed together as promotional package.
5.Adopt Omron brand parts such as temperature controller,timer,relay,switch,and sensor.
6.Alarm for scrap film break or full.
7.A pair of photoelectric switches in vertical for thin products.
8.Optional closing conveyor for small products.
9.Optional sensor for transparent products.
Technical Parameters
|
PRY-420 Shrink Packaging Machine
|
|
|
Sealing Type
|
reciprocating sealing & side sealing
|
|
Power Supply
|
220V / 50~60Hz / single phase
|
|
Packing Capacity
|
10~80 packs per minute
|
|
Max. Packing Height
|
125 mm
|
|
Max. Product Size
|
500 * 400 * 125 mm
|
|
Film Type
|
center folded polyolefin (pof) film
|
|
Max. Film Size
|
630mm(width) * 280mm(outer diameter)
|
|
Power Consumption
|
2 kw
|
|
Sealing Knife
|
special durable alloyed sealing knife with anti-stick Teflon coats
|
|
Operation Interface
|
flextronics PLC & HMI , Omron temperature controller
|
|
Machine Material
|
carbon steel
|
|
Machine Dimension
|
2500 * 1200 * 1480 mm
|
|
Weight
|
600 kg
|
Applications
It is widely used in food,pharmaceutical,stationary,toy,auto parts,cosmetics,printing, hardware,electrical appliances and other industry.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
