PRY Model High Speed Roll Paper Die Cutting Machine

PRY Model High Speed Roll Paper Die Cutting Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

PRY Model High Speed Roll Paper Die Cutting Machine

PRY-1450 Roll Paper Die Cutting Machine

Features

PRY-1450 is an ideal and professional machine in die-cutting,creasing,embossing and full-stripping various PE coated paper,normal paper,corrugating paper and plastic material.It applies to paper cup,paper box,medical package,wine package,food package and other environmental protection products.It adopts micro-computer,HMI,servo positioning, alternating current frequency converter,automatic counting,photoelectric rectifying,and pneumatic lock cutting plate,electromagnetic clutch,centralized oil lubrication,overload protection and distinctive gearing.All of these is the guarantee of steady pressure,precise positioning,smooth running,safety and reliability operation.

Technical Parameters

Roll Paper Die Cutting Machine
Type	PRY-950/PRY-950H/ PRY-950P	PRY- 1200	PRY- 1300	PRY-1450
Mechanical Running Speed	150 ~ 260 times/min (Mechanical speed max 260 times)		100 ~ 210 times/min (Mechanical speed max 210 times)
Paper Convey Width	950 ~ 300 mm	1200 ~ 400 mm	1300 ~ 400 mm	1450 ~ 400 mm
Maximum Cutting Size	950 * 540 mm 950 * 540 mm 950 * 640 mm	1200 * 640 mm	1300 * 750 mm	1450 * 750 mm
Total Weight	7000kgs/7400kgs/7800kgs	9000kgs	10500 kgs	13000 kgs
Overall Dimension	4.5 x 2. 1 x 1.85m	4.7 * 2.3 * 1.85 m
Suitable Material	100 ~ 800 g/m2 white cardboard,PE coated paper,Kraft paper,etc.
Total Power	12kw ; 380V / 50Hz	15.5kw ; 380V / 50Hz
Air Source	0.6Mpa ; 0.3m³/min
Max Roll Paper Diameter	1600 mm
Cut Precision	± 0.15 mm

Machine Advantages

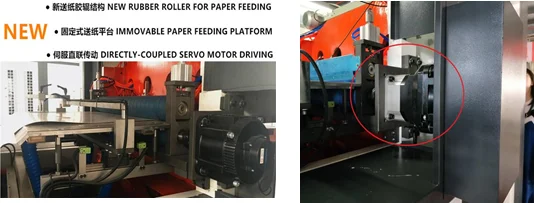

1.Directly coupled servo motor driving with reduce motor,which can make the mechanical speed up to 260 times/min.

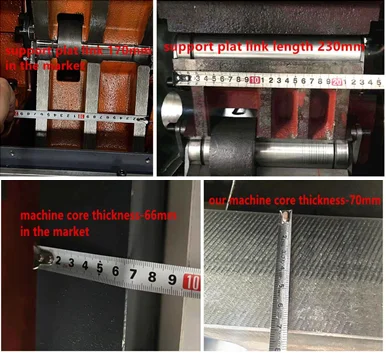

2.Enhanced machine core to take much more pressure,up to 350T.The length of the connecting rod supporting the die-cutting platform inside the movement is 230 mm.

3.Positioning block in movable platform we add one more positioning block in movable platform.It makes the pressure of the platform more stable,and endurable.

4.Oil circuit and oil detection system.The outside oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.

5.Machine adopt IOT technology.Not only Customer can supervise the machine operation situation on Mobile APP,manufactuer also can through this app to fullful remote control to provide the aftersale service.So both of two parts can save the service time and
money.

6.Paper blocked alarm system.The new design adds the alarm system to make the machine stop when paper feeding blocked.

7.Paper feeding balance regulator add new type paper feeding balance regulator to adjust he minor unbalance situation.

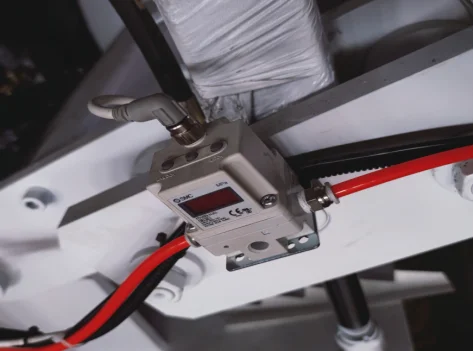

8.Paper roll tension system use proportional valve control, automatic tension control,and easy operation.

Machine Option Items

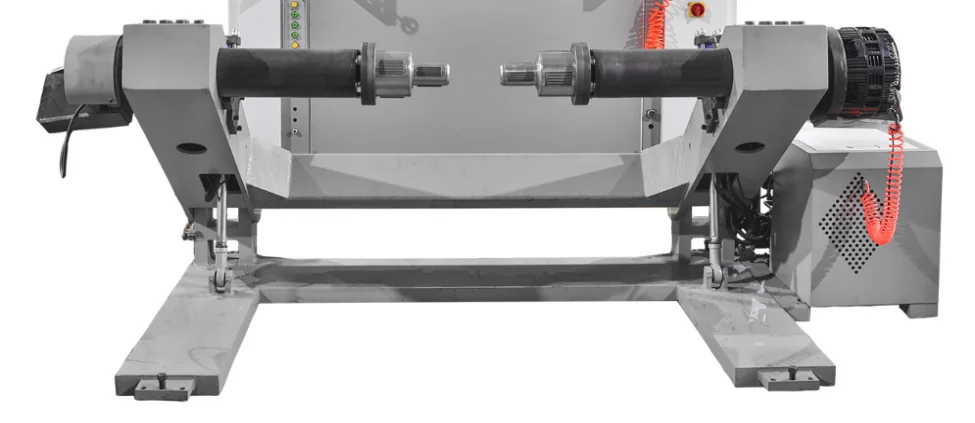

Airshaftless System

1.It bears much more weight than standard airshaft.
2.It fits any roll paper core sizes.

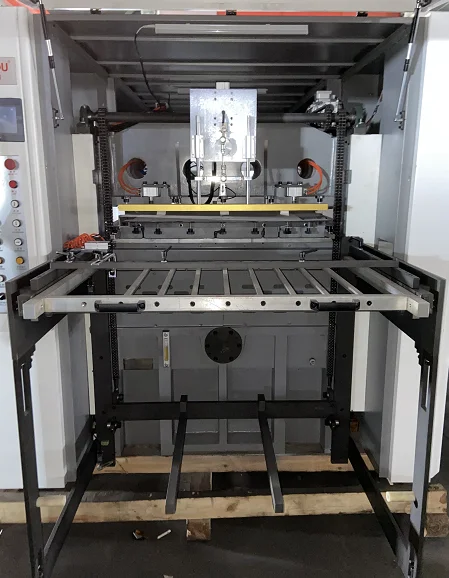

Non-stop Collect System

1.Instead of stop running to move the plastic pallet from the machine
2.It saves insert the metal pallet during machine is running,to save the product collect time.

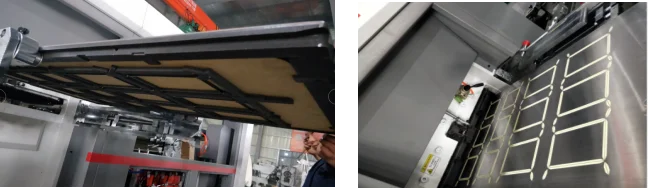

Male and Female Plate

Male and female plate make the mold change easier.

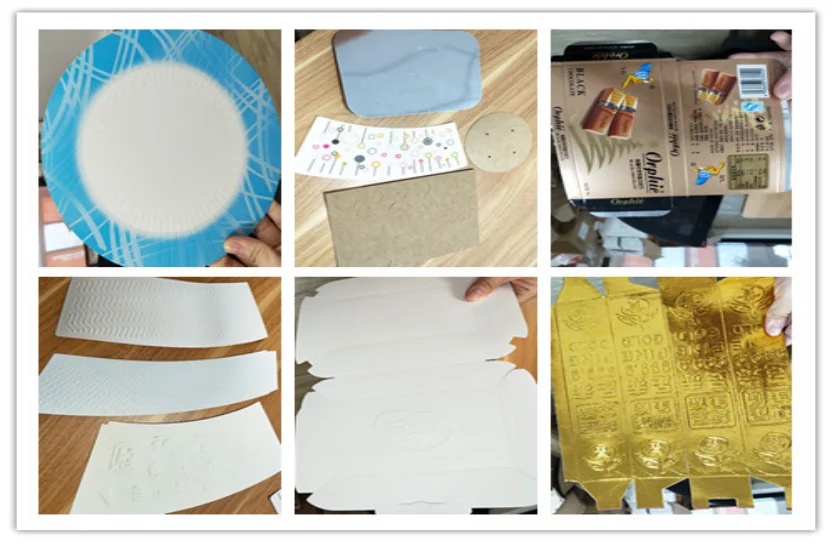

Applications

Q1.Are you a manufacturer or a trading company?

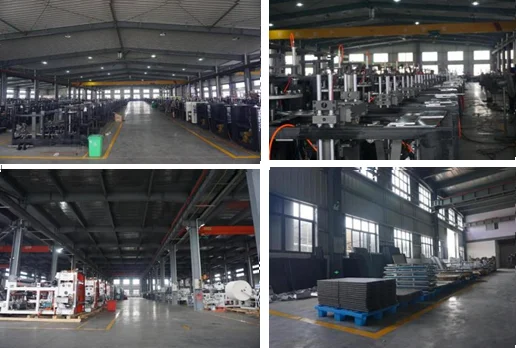

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
